Alert Flow in CA SOI: Mid-Tier Connector

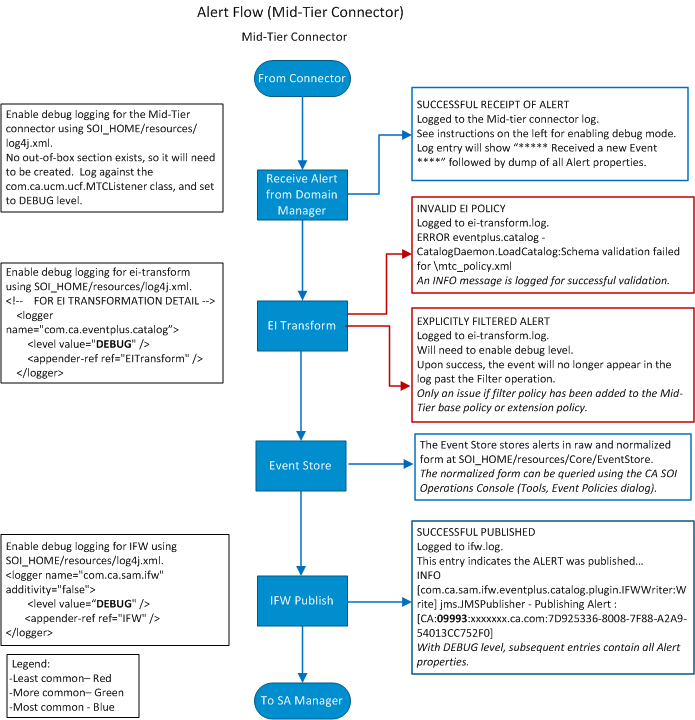

The following graphic shows the alert flow and related log files in the Mid-Tier connector:

This illustration shows the alert flow and related log files in the Mid-Tier connector.

The same process is followed as explained in the Alert Flow in CA SOI: Connectors section. However, in this case, the IFW publishes alerts to the SA Manager.
