Alert Flow in CA SOI: SA Manager

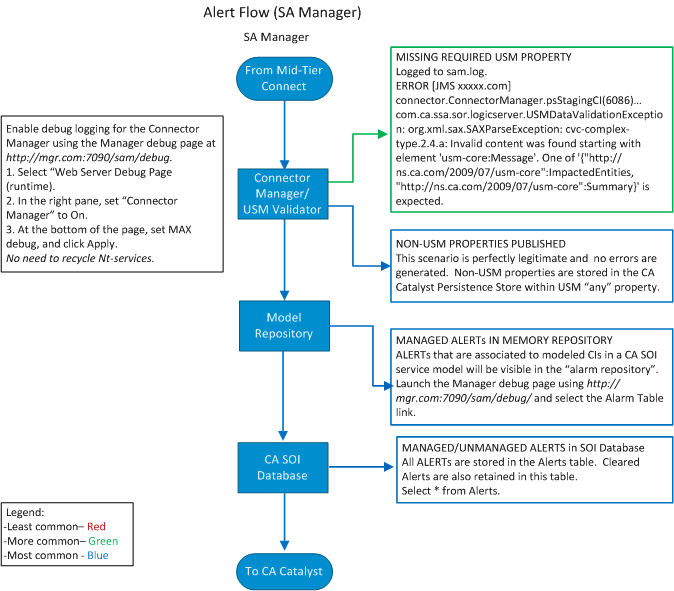

The following graphic shows the alert flow and related log files in the SA Manager:

This illustration shows the alert flow and related log files in the SA Manager.

The following points explain the information that is covered in the graphic:

Connector Manager (or USM Validator) validates the alerts (for example, validates for any missing USM properties) coming from the connector (or Mid-Tier connector).
Model Repository maintains and caches the model information. All managed alerts become available in this repository.
All alerts (managed and unmanaged) are stored in the CA SOI database (SA Store) and become available to CA Catalyst.
