Alert Flow in CA SOI: Connectors

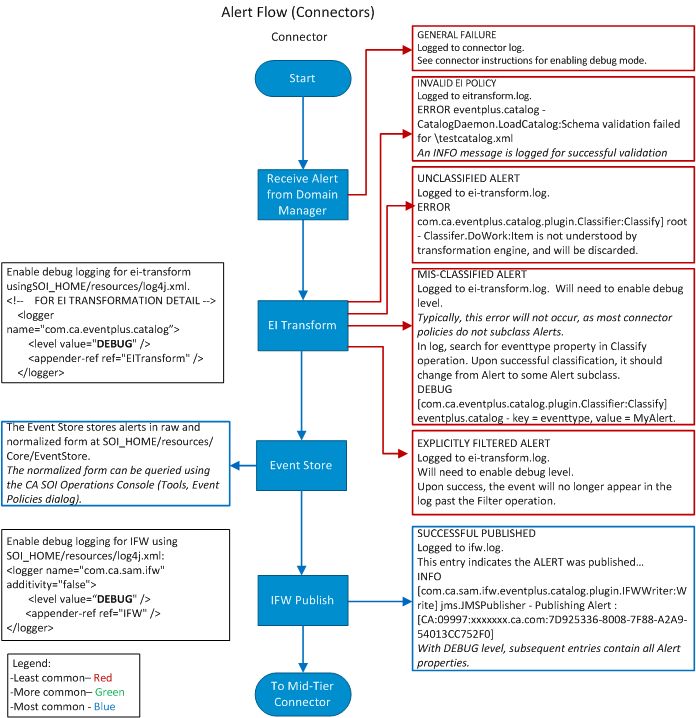

The following graphic shows the alert flow and related log files in connectors:

The following points explain the information that is covered in the graphic:

• Connector receives alerts from the domain manager.
• Alerts are transformed to the USM format.
• The Event Store stores all alerts.
• Alerts are passed to the IFW for publishing.
• The IFW publishes transformed alerts to the Mid-Tier connector (if available).

  Note: If the Mid-Tier connector is not present, alerts directly move to the SA Manager.
