Verify CA Spectrum

To verify the deployment, log in to the virtual machine where the SpectroSERVER is deployed.

Follow these steps:

  1. Log in to the virtual machine with administrator credentials.
  2. Click Start, All Programs, CA, and then start SPECTRUM Control Panel.

    The CA Spectrum Login page opens.

  3. Select maas-spectrum, when prompted to select host machine.

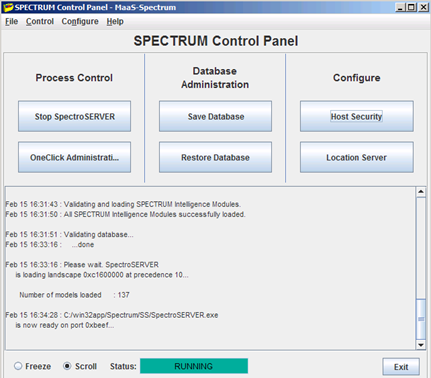

    Displays the spectrum control panel with the status of spectroserver as running

  4. Ensure that the SpectroSERVER status is RUNNING.
  5. Click File, Select Host Machine from the Spectrum Control Panel menu bar.
  6. Select maas-ss, when prompted to select host machine.
  7. Ensure that the Spectrum SERVER status is RUNNING.

    You have verified that SpectroSERVER is deployed and running on the maas-spectrum and maas-ss machines.
