Using CA Vtape Objects › Using Objects for Analyzing CA Vtape Activity › Free Queue Object › Working with the Free Queue Object

Working with the Free Queue Object

The Free Queue object displays information on the Virtual Volume Free Queue in the CA Vtape system. You can display the Free Queue object to view Virtual Volume Free Queue information. You can also perform Refresh actions using this object's Action options.

To display Virtual Volume Free Queue information

1. Open the Object Tree so it is showing the CA Vtape objects as described in the section Using the Windows Client to Access the CA Vtape Objects.

   CA Vtape objects are displayed in the Object Tree.

2. Click the Free Queue object in the Object Tree.

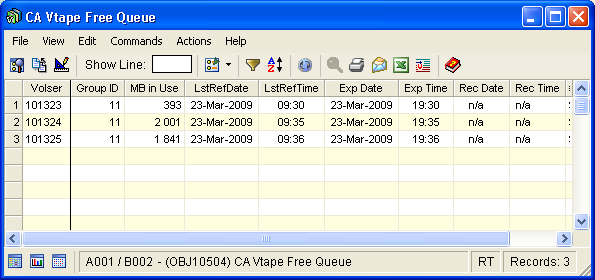

   The table view of the Free Queue object appears, as shown in the following sample:



Note: Click the Help About Object tool bar icon (), to display a description of the field values displayed in the columns in the Free Queue object.

Free Queue Actions Menu

The following Refresh action is available from the Actions menu option located on the Free Queue object view Menu Bar:

Reset Free Queue

This action causes all the Free Queue to be rebuilt.
