Using CA Vtape Objects › Using Objects for Analyzing CA Vtape Activity › Volume Pools Object › Working with the Volume Pools Object

Working with the Volume Pools Object

The Volume Pools object displays information about every Virtual Volume Pool defined to this CA Vtape system. You can display the Volume Pools object to view Virtual Volume Pool information. You can also perform Refresh actions using this object's Action options.

To display Virtual Volume Pools information

1. Open the Object Tree so it is showing the CA Vtape objects as described in the section Using the Windows Client to Access the CA Vtape Objects.

   CA Vtape objects are displayed in the Object Tree.

2. Click the Volume Pools object in the Object Tree.

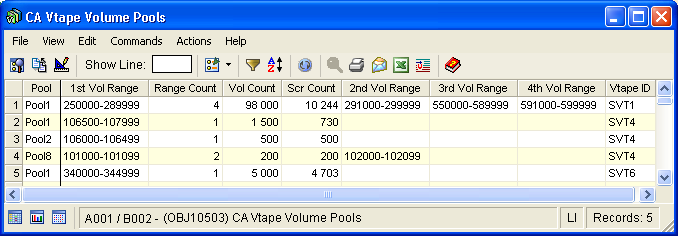

   The table view of the Volume Pools object appears, as shown in the following sample:



Note: Click the Help About Object tool bar icon (), to display a description of the field values displayed in the columns in the Volume Pools object.

Volume Pools Actions Menu

The following Refresh action is available from the Actions menu option located on the Volume Pools object view Menu Bar:

Refresh Pools

Causes the Virtual Volume Pool definitions to be refreshed from the CA Vtape parmlib concatenation.
