Using CA Vtape Objects › Using Objects for Analyzing CA Vtape Activity › Peer-to-Peer Remote Statistics Object › Working with the Peer-to-Peer Remote Statistics Object

Working with the Peer-to-Peer Remote Statistics Object

The Peer-to-Peer Remote Statistics object displays statistics for each Peer-to-Peer connection between this CA Vtape and its defined remotes. You can display the Peer-to-Peer Remote Statistics object to view Peer-to-Peer remote statistics. You can also perform Refresh actions using this object's Action options.

To display Peer-to-Peer remote statistics

1. Open the Object Tree so it is showing the CA Vtape objects as described in the section Using the Windows Client to Access the CA Vtape Objects.

   CA Vtape objects are displayed in the Object Tree.

2. Click the Peer-to-Peer Remote Statistics object in the Object Tree.

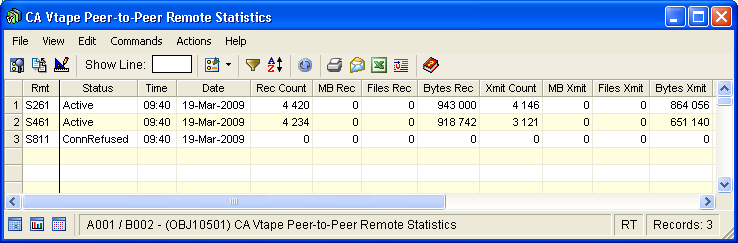

   The table view of the Peer-to-Peer Remote Statistics object appears, as shown in the following sample:



Note: Click the Help About Object tool bar icon (), to display a description of the field values displayed in the columns in the Peer-to-Peer Remote Statistics object.

Peer-to-Peer Remote Statistics Actions Menu

The following Refresh action is available from the Actions menu option located on the Peer-to-Peer Remote Statistics object view Menu Bar:

Refresh Remotes

Causes all of the Peer-to-Peer Remote options to be refreshed from the CA Vtape parmlib concatenation.
