CATLMS Objects › Summary by Retention Location Object

Summary by Retention Location Object

The Summary by Retention Location object displays a summary of all tapes grouped by retention location. The CATLMS catalog controls all of the tapes in the summary. The CATLMS Tape Volume records provide input to this summary.

For each retention location, this object creates one summary record containing the following information:

• The group name
• The number of tapes in the location
• The percent of the total the group represents
• The total allocated MB
• The average, minimum and maximum allocated space for the tapes in the group
• The total number of files on the tapes (with average, minimum, and maximum values)
• The total number of opens for all the tapes in the location (with average, minimum, and maximum values)
• The total number of tape blocks on all of the tapes in the location (with average, minimum, and maximum values).

Note: For more information on these fields, see the Help About Object online help.

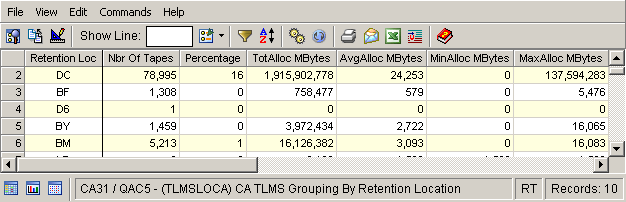

Example: Summary by Retention Location

In this example a table view of the summary is displayed by selecting the By Retention Location object in the Summaries folder under the CATLMS folder in the Object Tree and clicking the cogs:
