CATLMS Objects › Summary by Box/Cabinet (Slot) Object

Summary by Box/Cabinet (Slot) Object

The Summary by Box/Cabinet (Slot) object displays a summary of all tapes grouped by Box/Slot/Cabinet ID. The CATLMS catalog controls all of the tapes in the summary. The CATLMS Tape Volume records provide input to this summary.

For each Box/Slot ID, this object creates one summary record containing the following information:

• The group name
• The number of tapes in the Box/Slot
• The percent of the total the group represents
• The total allocated MB
• The average, minimum and maximum allocated space for the tapes in the group
• The total number of files on the tapes (with average, minimum, and maximum values)
• The total number of opens for all the tapes in the Box/Slot (with average, minimum, and maximum values)
• The total number of tape blocks on all of the tapes in the Box/Slot (with average, minimum, and maximum values)

Note: For more information on these fields, see the Help About Object online help.

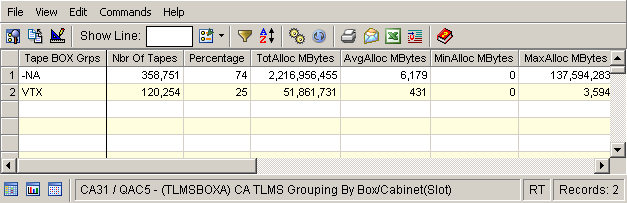

Example: Summary by Box/Cabinet (Slot)

In this example a table view of the summary is displayed by selecting the By Box/Cabinet (Slot) object in the Summaries folder under the CATLMS folder in the Object Tree and clicking the cogs:
