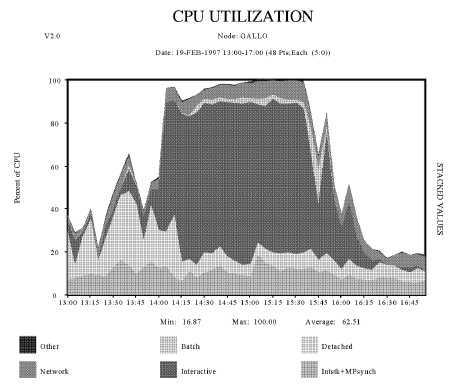

The following figure, PostScript Graph, illustrates a PostScript formatted pattern graph. The graph was generated with the following command:
$ ADVISE PERFORMANCE GRAPH/BEGINNING=19-FEB-2006:13:00/ENDING=19-FEB-2006:17:00 - _$ /TYPE=CPU_UTILIZATION/NODE=GALLO/OUTPUT=CH4CPU.PS - _$ /FORMAT=POSTSCRIPT=CHARACTERISTIC=PATTERN

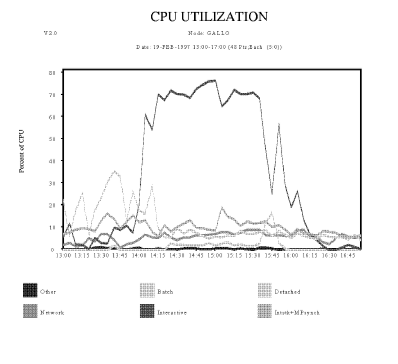

The following figure, PostScript Formatted Line Graph, illustrates a PostScript formatted line graph. The graph was generated with the following command:
$ ADVISE PERFORMANCE GRAPH/BEGINNING=19-FEB-2006:13:00 _$ /ENDING=19-FEB-_$2006:17:00/TYPE=CPU_UTILIZATION/NODE=GALLO _$ /FORMAT=POSTSCRIPT=CHARACTERISTICS=LINE/OUTPUT=CPU_LINE.PS
The LINE keyword is used with the /NOSTACK qualifier to avoid occlusion.
ANSI Formatted Graph is the same CPU utilization graph as Tabular Formatted Graph in ANSI formatted output. The default width of an ANSI graph is 132 characters. This graph overrides the default width. It was generated with the following command:
$ ADVISE PERFORMANCE GRAPH/BEGINNING=19-FEB-2006:13:00/ENDING=19-FEB-2006:17:00 -
_$ TYPE=CPU_UTILIZATION/NODE=GALLO/OUTPUT=CPU.LIS -
_$ /FORMAT=ANSI=(WIDTH=79,HEIGHT=25)
CPU UTILIZATION Node: GALLO Date: 19-FEB-2006 13:00-17:00 LEGEND: * = Other N = Network B = Batch I = Interactive D = Detached X = Intstk+MPsynch (Metric Values are Stacked) Y-Units: Percent of CPU 100 ! N * NNNNNNNNNNNNNNNNNNN 96 ! NIN NNNNNBINNNBNINNBNBNNNNB 92 ! *NINNNNBIBIIIIIBIIIBBIBIIIIBI 88 ! NIIINIIIIIIIIIIIIIIIIIIIIIIII N 84 ! IIIIIIIIIIIIIIIIIIIIIIIIIIIII IN 80 ! N IIIIIIIIIIIIIIIIIIIIIIIIIIIIIN IB 76 ! B IIIIIIIIIIIIIIIIIIIIIIIIIIIIIN II 72 ! * I IIIIIIIIIIIIIIIIIIIIIIIIIIIIIB II 68 ! N I IIIIIIIIIIIIIIIIIIIIIIIIIIIIIBNII 64 ! N D IIIIIIIIIIIIIIIIIIIIIIIIIIIIIBNII 60 ! D D NIIIIIIIIIIIIIIIIIIIIIIIIIIIIIBBII 56 ! D D NIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIBII 52 ! DNDN IIIDIIIIIIIIIIIIIIIIIIIIIIIIIIIBIIN N 48 !I N DBDIN INDIIDIIIIIIIIIIIIIIIIIIIIIIIIIIIBIII N 44 !I I DIDDI IIDIIDIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIN IN 40 !D N I DIDDI IDDIIDIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIN II 36 !D D D DIDDDIDDDIIDIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIINIIN 32 !D IN D DNDDDDDIDDDDIDIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIN 28 !DNIDID NDNDDDDDIDDDDIDIIIIIIIIIIIIIIIIDIIIIIIIIIIIIIIIIIINN 24 !DIDDDDNNDIDDDDDIDDDDIDDIIIIDIDDIIIIIIDDDIIIIIIIDDIIIIIIIIINNN* * N 20 !DIDDDDDDDDXDXDDDXDDDDDDIIIIDDDDDDIIIIXXDDDDDDDDDDDDDIIIDIIIININNNNNNDN 16 !DDDDDDDDDXXXXDDDXXXXDDDDDDDDDXXDDDDDDXXXXDDXXDDXXDDDDDIDDDDIIDDNDDIIIDN 12 !DDDXXXXDXXXXXXXXXXXXXXDXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXDDXDDDDDXXDDDDDDDD 8 !XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX 4 !XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX ++-----+-----+-----+-----+-----+-----+-----+-----+-----+-----+-----+---- 13:00 13:20 13:40 14:00 14:20 14:41 15:01 15:21 15:41 16:01 16:22 16:42 Min: 12.72 Max: 100.00 Average: 62.51
The following table, Tabular Formatted Output, illustrates tabular formatted output. Tabular output is in 132-column format. It was generated with the following command:
$ ADVISE PERFORMANCE GRAPH/BEGINNING=19-FEB-2006:13:00/ENDING=19-FEB-2006:17:00 - _$ /TYPE=CPU_UTILIZATION/NODE=GALLO/OUTPUT=CPU_TAB.LIS/FORMAT=TABULAR
CPU UTILIZATION Node: GALLO Date: 19-FEB-2006 13:00-17:00 Metric Values are Stacked (Added to the left) Units: Percent of CPU Time Other Network Batch Interactive Detached Intstk+MPsynch 19-FEB-2006 13:00 37.0417 36.8618 34.8204 34.7315 29.2958 7.1025 19-FEB-2006 13:05 28.7843 28.6284 25.6078 25.5536 13.9655 7.7340 19-FEB-2006 13:10 30.8503 30.6480 29.0889 29.0197 26.4432 8.9179 19-FEB-2006 13:15 39.5400 39.1330 37.2836 37.2375 35.1232 9.5303 19-FEB-2006 13:20 21.6206 21.3342 16.1865 16.1200 15.7037 9.1339 . . . 19-FEB-2006 16:30 16.8700 16.5002 13.9558 13.9363 13.8224 7.8752 19-FEB-2006 16:35 18.6083 18.4667 13.4750 13.4625 13.3917 7.7000 19-FEB-2006 16:40 20.1096 19.7068 12.6488 12.6349 11.5711 6.1713 19-FEB-2006 16:45 18.3733 18.3733 12.5977 12.5852 10.4367 5.7852 19-FEB-2006 16:50 19.1731 18.7125 13.6036 13.5897 12.2661 5.7172 19-FEB-2006 16:55 18.2973 17.5590 11.2668 11.0500 10.7143 6.5597 Minimum Values 0.0000 0.9171 0.0083 0.0708 4.1546 5.7172 Maximum Values 1.1978 9.0092 16.5792 75.3240 34.9630 8.7164 Average Values 0.4288 5.6702 1.4347 33.7350 11.1873 0.0492
The following example, CSV Formatted Output, illustrates CSV formatted output. It was generated with the following command:
$ ADVISE PERFORMANCE GRAPH/BEGINNING=22-MAR-2006:12:00/ENDING=22-MAR-2006:14:00 - _$ /NODE=(BYOB,BUGDEV,ORIPAS,BATCH,MIGHTB,CINAMN,CHATTY)/FORMAT=CSV=X_POINTS=8 - _$ /TYPE=CUSTOM=SYSTEM_METRIC=CPU_TOTAL/COMPOSITE
"PSPA CUSTOM GRAPH" "Nodes: BYOB, BUGDEV, ORIPAS, BATCH, MIGHTB, CINAMN, CHATTY" "Date: 22-MAR-2006 12:00-14:00" "Metric Values are Stacked (Added to the left)" "Units: %CPU Total Busy" "Time","2 Other Nodes,total","BUGDEV","BYOB","CINAMN","ORIPAS","BATCH" "22-MAR-2006 12:00",4.5250,3.8487,2.7485,1.5865,0.9080,0.6247 "22-MAR-2006 12:15",4.3510,3.6925,2.9084,1.2251,0.4400,0.1722 "22-MAR-2006 12:30",3.5105,2.9182,2.7072,1.5696,0.9082,0.6624 "22-MAR-2006 12:45",4.6329,4.0381,3.6512,2.6581,1.2887,1.0471 "22-MAR-2006 13:00",9.6964,9.1100,2.8984,1.8634,0.8863,0.4046 "22-MAR-2006 13:15",11.1101,10.2576,3.4636,2.3228,1.2826,0.5255 "22-MAR-2006 13:30",28.1334,27.2356,12.2585,2.3256,1.2172,0.3333 "22-MAR-2006 13:45",29.9854,29.1150,14.0548,2.1800,0.9782,0.1727

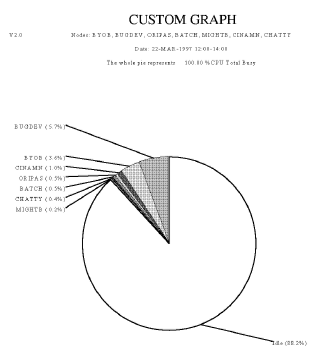

PostScript Formatted Pie Chart Output illustrates PostScript formatted output for a pie chart. It was generated with the following command:
$ ADVISE PERFORMANCE PIE_CHART/BEGINNING=22-MAR-2006:12:00 - _$ /ENDING=22-MAR-2006:14:00 - _$ /NODE=(BYOB,BUGDEV,ORIPAS,BATCH,MIGHTB,CINAMN,CHATTY)/FORMAT=POSTSCRIPT - _$ /TYPE=CUSTOM=SYSTEM_METRIC=CPU_TOTAL/COMPOSITE
The following example, Tabular Formatted Pie Chart Output, illustrates tabular formatted output for a pie chart. It was generated with the following command:
$ ADVISE PERFORMANCE PIE_CHART/BEGINNING=22-MAR-2006:12:00 - _$ /ENDING=22-MAR-2006:14:00 - _$ /NODE=(BYOB,BUGDEV,ORIPAS,BATCH,MIGHTB,CINAMN,CHATTY)/FORMAT=TABULAR - _$ /TYPE=CUSTOM=SYSTEM_METRIC=CPU_TOTAL/COMPOSITE
PSPA CUSTOM GRAPH Nodes: BYOB, BUGDEV, ORIPAS, BATCH, MIGHTB, CINAMN, CHATTY Date: 22-MAR-2006 12:00-14:00 The whole pie represents 11.79 %CPU Total Busy Item Value Percent of Total ------------------------------------------------------------------------------ BUGDEV 5.68626 48.216 % BYOB 3.59973 30.523 % CINAMN 0.96963 8.222 % ORIPAS 0.49438 4.192 % BATCH 0.49370 4.186 % CHATTY 0.36808 3.121 % MIGHTB 0.18164 1.540 %
The following example, CSV Formatted Pie Chart Output, illustrates CSV formatted output for a pie chart. It was generated with the following command:
$ ADVISE PERFORMANCE PIE_CHART/BEGINNING=22-MAR-2006:12:00 - _$ /ENDING=22-MAR-2006:14:00 - _$ /NODE=(BYOB,BUGDEV,ORIPAS,BATCH,MIGHTB,CINAMN,CHATTY)/FORMAT=CSV - _$ /TYPE=CUSTOM=SYSTEM_METRIC=CPU_TOTAL/COMPOSITE
"PSPA CUSTOM GRAPH" "Nodes: BYOB, BUGDEV, ORIPAS, BATCH, MIGHTB, CINAMN, CHATTY" "Date: 22-MAR-2006 12:00-14:00" "The whole pie represents 11.79 %CPU Total Busy" "Item","Value","Percent of Total" "BUGDEV", 5.68626,48.216 "BYOB", 3.59973,30.523 "CINAMN", 0.96963, 8.222 "ORIPAS", 0.49438, 4.192 "BATCH", 0.49370, 4.186 "CHATTY", 0.36808, 3.121 "MIGHTB", 0.18164, 1.540
|
