Understanding the Overall Health of Your IP Network › Condition Summary

Condition Summary

The Condition Summary shows the status of a product-defined set of conditions. A condition is a characteristic that is being monitored based on the underlying performance attributes of monitored IP resources.

From the IP Summary Display, you can view the conditions of the following resources:

• Stack IP, TCP, and UDP layers
• Stack network interfaces
• Ports by port number or address space
• EE
• APPN/HPR

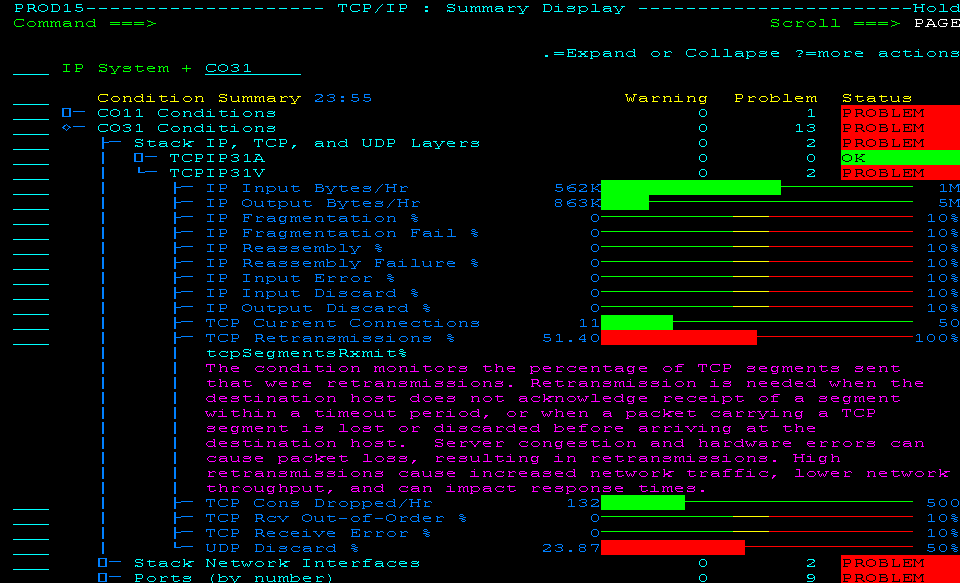

Example: Condition of Stack IP, TCP, and UDP Layers Across Multiple Systems

This example shows a partially expanded display in multisystem mode. The display lists the systems monitored by the linked regions. Each system then expands to the condition summaries.

For the TCP Retransmissions % condition, it identifies the attribute and shows the brief explanation about the condition (through the I (Information) action). You can enter the HLP action next to a problematic attribute to review the recommended actions.
