General Information

CA IDMS Dictionary Migrator is the CA system migration tool for transferring systems from a testing environment to a production environment. CA IDMS Dictionary Migrator Assistant (DMA) is an online tool that assists you in selecting parameters to supply to CA IDMS Dictionary Migrator. This chapter introduces CA IDMS Dictionary Migrator and DMA's features and capabilities. It also explains how CA IDMS Dictionary Migrator can be used during system development and for dictionary maintenance.

Migration Steps

The steps for performing a migration are as follows:

Determine what needs to be migrated.
Determine where the information to be migrated is located.
Determine where the information to be migrated is placed.
Select CA IDMS Dictionary Migrator parameters manually, or select them using DMA.
Run CA IDMS Dictionary Migrator.
Review CA IDMS Dictionary Migrator (depending on how you installed and ran CA IDMS Dictionary Migrator).
Run the upload steps.
Review the output of the upload.
Activate (complete) using the new copy Clist.

Note: The information that is migrated becomes executable when the Clist is invoked or the central version is cycled.

Definition of Migration

Migration is the transfer of a set of related entities stored in a dictionary to another dictionary. A successful migration ensures that all migrated entities function in the new environment producing results similar to those in the old environment and that no entities in the new dictionary outside of the set of migrated entities are materially affected by the migration.

When to Use CA IDMS Dictionary Migrator

Use CA IDMS Dictionary Migrator whenever you need to transfer information from one dictionary to another. This chapter will further explain performing migration.

To configure the migration you can migrate by PROGRAM and DIALOG. PROGRAM indicates that the specified program is to extracted with its related entities. DIALOG indicates that the specified dialog is to be extracted with its related entities.

Migrate Systems Quickly and Accurately

CA IDMS Dictionary Migrator is a powerful and comprehensive tool for transferring complete systems or portions of systems from one dictionary to another.

CA IDMS Dictionary Migrator eliminates the time-consuming tasks of researching and listing every component of a system and of manually producing extensive syntax to migrate a system. CA IDMS Dictionary Migrator does the work automatically. You can move systems into production quickly, as well as accurately reflect their testing environments.

CA IDMS Dictionary Migrator is especially effective in a CA ADS environment. CA IDMS Dictionary Migrator copies from the dictionary, the source, and load modules that store all CA ADS entities records, elements, files, dialogs, messages, tables, schemas, subschemas, maps, and panels during development and transfers them to the production environment. See the first graphic.

Take the Guesswork Out of Migration

CA IDMS Dictionary Migrator takes the guesswork out of migration and puts you in complete control with its easy-to-use parameters and comprehensive reports. CA IDMS Dictionary Migrator gives you a thorough review of every component in a system, compares the testing environment to the production environment, and then migrates the data.

With CA IDMS Dictionary Migrator, moving systems from testing into production, you can accurately plan resources for the final stages of development. The efficiency of CA IDMS Dictionary Migrator and the accuracy of its results let you free resources for other projects by meeting deadlines on current projects.

CA IDMS Dictionary Migrator also supports the transferring of dictionary entities to and from intermediate staging, or QA, or integration dictionaries.

CA IDMS Dictionary Migrator Is Easy to Use

Migrating a system requires extracting its components from source dictionaries and transferring them to an object dictionary. CA IDMS Dictionary Migrator performs the processing automatically. The second graphic illustrates CA IDMS Dictionary Migrator processes.

You can direct and control this process easily with CA IDMS Dictionary Migrator's parameters. Parameters give you the flexibility to perform simple or complex migration.

For a simple migration you need to specify the source and object dictionaries and the system that is going to be migrated. For a more complex migration, select from many optional parameters that set up criteria and tailor the process to meet your needs.

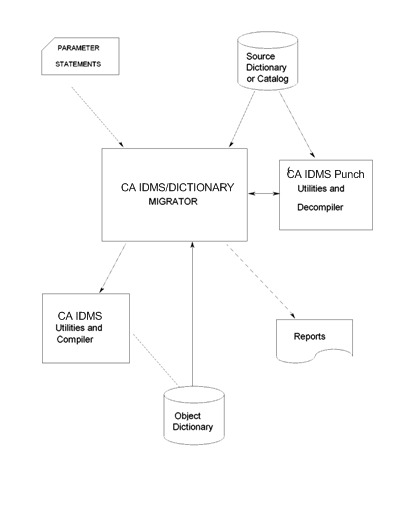

This graphic shows the dialog components.

Flexible Processing Capabilities

CA IDMS Dictionary Migrator's processing capabilities are flexible. Parameters allow you to migrate:

Entire systems by specifying organizational structure
Single components with or without system relationships
Source components from the DDLDML area
Load components from the DDLDCLOD area
Selected messages from the DDLDCMSG area
Changed entities only.
SQL catalog definitions from the DDLCAT area

You can direct the migration process to:

Access multiple machines and source dictionaries and/or catalogs
Assign new or alternate version numbers to system components
Qualify selection by version number and date criteria
Make up to 50 changes in upload syntax
Delete migrated entities from the source dictionary.

In addition, CA IDMS Dictionary Migrator allows you to review dictionary contents before and after a migration and to use the dictionary sign-on security.

Variations of the migration process are nearly unlimited with CA IDMS Dictionary Migrator. The parameters give you the freedom to configure a migration that is tailored to your system requirements and dictionary standards.

SQL Entity Migration

CA IDMS Dictionary Migrator allows you to extract definitions of logical SQL entities from a source catalog and create a syntax file containing these definitions for subsequent upload to a target catalog. Support for the following SQL entity types is included:

Table(s)
Views(s)
Schema(s)
Table Procedure(s)

Improve Development Productivity

With CA IDMS Dictionary Migrator you can improve productivity in both new applications development and existing applications maintenance by moving systems quickly and accurately from dictionary to dictionary.

New Applications Environment

You can use CA IDMS Dictionary Migrator to copy a new application into production. The following graphic illustrates how easily this can be done.

Before the actual transfer to a production environment you can direct CA IDMS Dictionary Migrator to produce reports. From the reports you can review system components and relationships as they exist in the source dictionary and the syntax statements that CA IDMS Dictionary Migrator will provide for the actual migration.

When you have completed your review, you need only run the upload step of the migration you are performing. CA IDMS Dictionary Migrator generates all the syntax necessary for the migration.

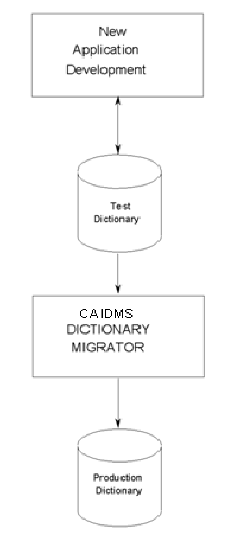

This graphic shows a new application development flowchart

Existing Applications Environment

CA IDMS Dictionary Migrator is as useful in an existing applications environment as it is in the new applications environment. CA IDMS Dictionary Migrator allows you to perform testing and maintenance on a system without disturbing its production environment. The following graphic illustrates how you can use CA IDMS Dictionary Migrator for existing applications maintenance.

CA IDMS Dictionary Migrator produces a comprehensive listing of the production system and its components. From the listing you can select the necessary components--source and load modules that store dialogs, messages, tables, schemas, subschemas, maps, and panels, that are moved to the test dictionary.

The components can be assigned to a new version number to keep them distinct from current production entities. This makes it easy to test changes in entity definitions and make system modifications while keeping the production system intact.

When testing is complete, you can examine the reports to compare the system in maintenance to the original production system. Once you've noted the changes, you can migrate the changed portions back to the production version.

By selecting only the modified components, you can significantly reduce the time it takes to copy tested applications back into the production environment. CA IDMS Dictionary Migrator moves the modified system from its test dictionary to the production dictionary accurately and quickly.

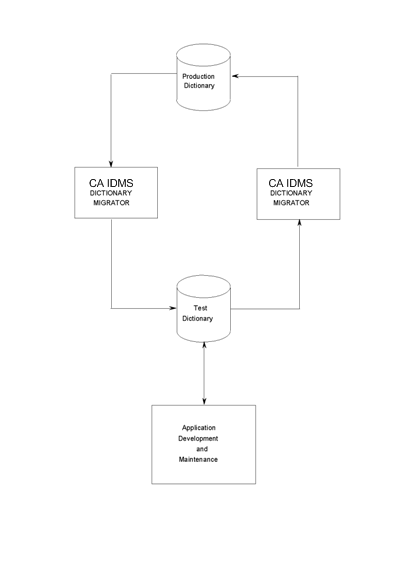

This graphic shows a flowchart of existing applications.

Backup and Recovery

CA IDMS Dictionary Migrator can also be used to backup and recovery systems. Before moving a system from one dictionary to another you can back up the system to tape by using USMCOPY. If you discover that the new version is not correct after you have migrated it, you can restore the original system.

Once a system is backed up to tape, you have an excellent way to access an individual system.

Configure the Migration to Meet Your Needs

CA IDMS Dictionary Migrator offers many options for tailoring a migration to meet your needs. To highlight a few possibilities, you can:

Migrate an entire system by specifying its organizational structure or a related system component
Migrate a single system component without relationships
Migrate in a multiple machine environment
Extract components from more than one source dictionary.

Migrate Entire Systems

CA IDMS Dictionary Migrator provides you with methods of directing the migration of an entire system. You can direct CA IDMS Dictionary Migrator to trace either organizational structures or program/dialog connections, or migrate an entire ADSA application and all of the dialog programs and their components used in the application. Dictionary relationships are followed with either method to locate every component of the system.

Migrate by Organizational Structure

Migrating a system by its organizational structure is especially useful when you have linked all programs to an attribute, a system, a user, a program, or a dialog.

For example, if every dialog of your billing system is linked to the system structure named BILLING, you need only identify how it is organized for a migration. By specifying SYSTEM=BILLING, you can direct CA IDMS Dictionary Migrator to locate every program or dialog associated with the system. CA IDMS Dictionary Migrator will follow dictionary relationships to locate every component used by the billing system's programs or dialogs.

This method provides an efficient way to trace systems that are very large or that have been in development for a long time. For more information see the following flowchart.

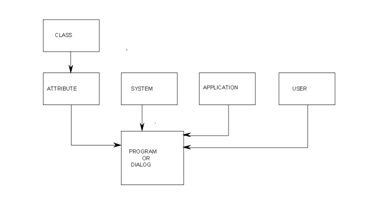

This flowchart shows migration using organizational structure

Migrate by Organizational Structure Without Regard to Dialog

Migrating a system by its organizational structure is especially useful when you have linked an entire system to an attribute.

For example, if every component of your billing system is linked to the ATTRIBUTE structure named BILLING, you need only identify how it is organized for a migration. By specifying ATTRIBUTE=BILLING, and LEVEL=ENTITY, you can direct CA IDMS Dictionary Migrator to locate every entity occurrence associated with the system. CA IDMS Dictionary Migrator follows dictionary relationships to locate every component used by those entity occurrences. For more information see the following flowchart.

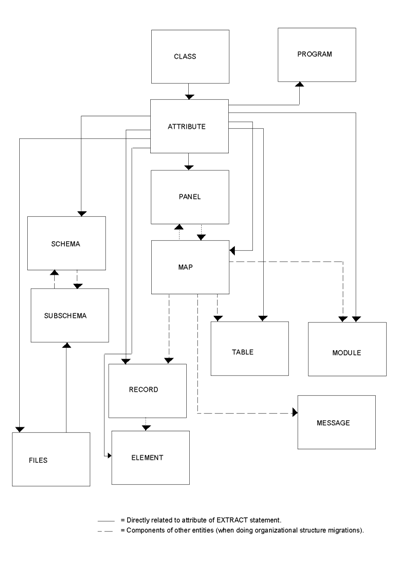

This graphic shows organizational structure without regard to program/dialog relationship

Migrate by Component Relationship

Migrating an entire system by component relationship is useful when you have not linked a system to an organizational structure and are not sure of an entire system's contents. If you specify one of the system components, CA IDMS Dictionary Migrator locates the programs or dialogs that use the component and traces dictionary relationships to extract the entire system.

For example, by specifying a schema name you can direct CA IDMS Dictionary Migrator to locate dialogs that use subschemas related to the specified schema. CA IDMS Dictionary Migrator then extracts the schema, subschemas, dialogs, and all dialog-related modules, maps, panels, tables, records, and elements.

This method can also be used when you change component definitions and need to research the effects of the change on other components within a system before making a complete migration. For more information see the following flowchart.

Migrate a Single Dictionary Entity

You can identify a single system component and direct CA IDMS Dictionary Migrator to bypass its program or dialog relationships. CA IDMS Dictionary Migrator locates the component and searches for direct relationships. For example, when you specify a single record, the record is migrated only with its elements.

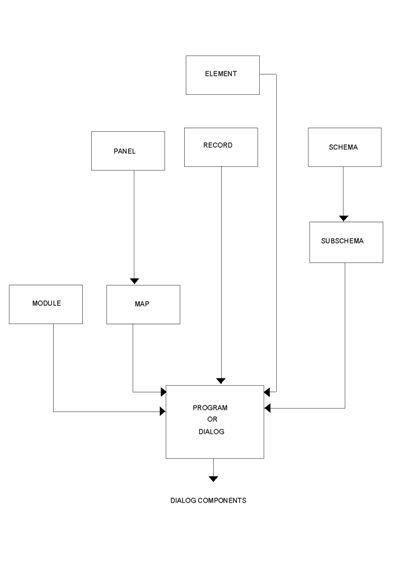

This graphic shows migration using component relationship

Migrate in a Multiple-Machine Environment

CA IDMS Dictionary Migrator can migrate when the object dictionary is not on the same machine as the source dictionary or Central Version (CV). To access another machine or CV you can use node communication or a two-job execution.

Single Job Execution--Using Node Communication

If you have node communication support, you can easily perform a migration in a multiple machine environment with a single-job execution of CA IDMS Dictionary Migrator. You enter parameters that allow you to identify the source and object central version nodes and the source and object dictionary.

The following graphic illustrates the single execution process.

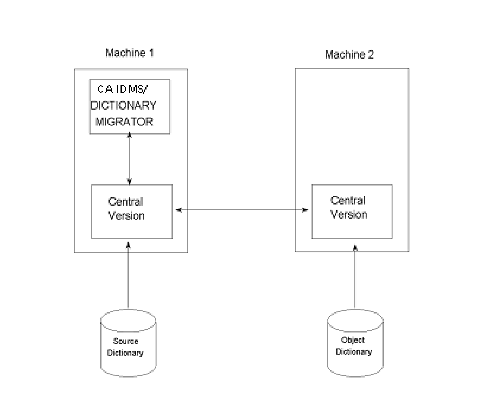

This graphic shows single job execution in a multiple machine environment

Two-Job Execution

If you do not have node communication support, you can easily process the migration in two jobs.

During the first job, the requested information from the source dictionary CPU is exported and stored on tape.

During the second job, the tape is read and source dictionary information is imported to another CPU and loaded in the object dictionary. Verification, discrepancy and cross-reference reports are also produced in this job. The following graphic illustrates the two-job process.

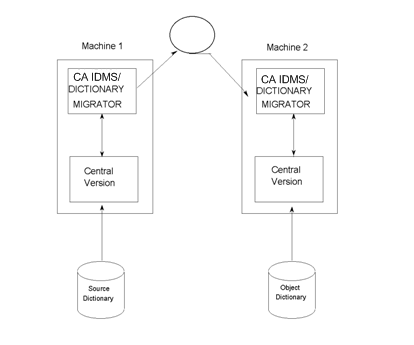

This graphic shows two job execution in a multiple machine environment

Advantages of the Two-Job Execution

The two-job execution allows you to communicate between different operating environments. A system developed in a z/VSE environment can be easily transferred to a z/OS environment, and vice versa.

There is an added advantage to using the two-job execution to perform a migration. The two-job execution provides an excellent method of logically backing up a system onto tape.

If you ever have to restore the system, CA IDMS Dictionary Migrator will produce verification reports about the system backed up on tape and the current system in the object dictionary before the system is actually restored.

Extract Entities from Multiple Source Dictionaries

CA IDMS Dictionary Migrator's flexible processing also allows you to extract system components from several source dictionaries in a single execution. If you are extracting from multiple source dictionaries, and node support is available, and dictionaries can be accessible on any CV, specify all dictionaries and the system component on the EXTRACT statement.

Comprehensive Reports

CA IDMS Dictionary Migrator produces nine comprehensive reports that illustrate each activity in its process:

Parameter Verification Report
Source Dictionary Verification Report
Extract Summary Report
Extract Detail Report
Entity Discrepancy Report
Entity Cross Reference Report
Syntax Production Report
Syntax Files Display Report
Catalog Navigation Report

These reports serve as information resources before and after a migration. Each report is illustrated and described in the Reports chapter.

Before the actual migration is executed you can request reports that display the results of CA IDMS Dictionary Migrator's validity and comparative activities. These reports give informative and error messages about parameter statement formats and dictionary contents. The Extract Detail Report can be tailored to list a system and all of its relationships. This is helpful when you are moving large systems from development to production and want a thorough listing of the system.

You can use these reports to preview the contents of a migration and determine if you will be migrating the components you need. The reports can be used to give you the names and locations of additional entities that need to be migrated. You can also use the report information to verify that the system being migrated will not affect other systems.

After a migration CA IDMS Dictionary Migrator's reports are useful for analyzing dictionary contents, documenting entire systems and previous migrations, and planning future migrations. You can use the report information to make decisions about applying and maintaining dictionary standards.

The thoroughness of CA IDMS Dictionary Migrator's reports eliminates the guesswork of performing a migration and ensures that the object dictionary accurately reflects the source dictionary. You can also use CA IDMS Dictionary Migrator's reports to plan the capacity of the object dictionary and to help select the best time to perform a migration.

Online Aid for Selecting Parameters

CA IDMS Dictionary Migrator Assistant (DMA) is an online tool that assists you in selecting parameters to submit to CA IDMS Dictionary Migrator. You provide information about the source dictionary, the target (object) dictionary, and the starting point. DMA converts this information into parameter statements which you can store and submit to CA IDMS Dictionary Migrator. In addition, DMA stores dictionary and starting point values, stores JCL to run CA IDMS Dictionary Migrator, and stores any messages you insert into the JCL.

DMA: Your CA IDMS Dictionary Migrator Connection

With DMA, you can:

Select and store parameters to submit to CA IDMS Dictionary Migrator
Store JCL required to run CA IDMS Dictionary Migrator
Submit parameters to CA IDMS Dictionary Migrator and JCL to run CA IDMS Dictionary Migrator.

Establish Several Migration Setups in One Session

In a DMA session, from entry to exit, you can define setups for one or more migrations.

A setup is established if you press the ENTER key on the Describe Migration Environment screen. DMA then has enough information to generate a set of parameter statements sufficient for a CA IDMS Dictionary Migrator run.

A setup is also established if you select a parameter file from the list of parmfiles.

Before submitting the parameter statements to CA IDMS Dictionary Migrator, you must store the setup.

Choose Parameters for Migration

DMA, CA IDMS Dictionary Migrator, and you each perform actions essential to the migration process. These distinct actions, described below, combine to permit quick and accurate migrations.

DMA Functions

DMA helps you choose parameters to submit to CA IDMS Dictionary Migrator. Optionally it can be used to store parameter statements and submit them to CA IDMS Dictionary Migrator. DMA can also store JCL to run CA IDMS Dictionary Migrator. When the job is submitted through DMA, the previously generated parameter statements are concatenated to the JCL.

User Responsibilities

As the DMA user, you:

Identify the source and target dictionaries, the starting point or starting points for each migration, and the source types and load types you want to include for and exclude from each migration
Type the source dictionary, target dictionary, and starting point values on DMA screens
Modify the JCL to run CA IDMS Dictionary Migrator
Select CA IDMS Dictionary Migrator output.

CA IDMS Dictionary Migrator Functions

When you use DMA to submit the CA IDMS Dictionary Migrator job, CA IDMS Dictionary Migrator will use the parameter statements generated by DMA to perform the following activities:

Check parameter statements for errors
Check the source dictionary for requested entities and components
Compare the extracted entities in the source dictionary to the entities in the target (object) dictionary
Generate syntax in the order necessary for successful uploading to CA IDMS utilities and compilers
Display the generated syntax
Provide reports telling you about the results of the specific migration activities.

Use DMA to Set up a Migration Easily

You avoid the necessity of learning the uses and syntax of CA IDMS Dictionary Migrator parameter statements by using DMA.

Alternative to Learning CA IDMS Dictionary Migrator Parameters

Instead of learning CA IDMS Dictionary Migrator parameters, you can simply provide DMA with the dictionary and starting point values necessary for performing a migration. The values you must enter in a DMA setup include:

The source dictionary name
The target (object) dictionary name
One or more starting points for the migration.

Optionally you may specify:

Limits and conditions on selection of the migration components
Up to 50 changes to be made in upload syntax
Inclusion of all source component types for migration
Exclusion of specific source component types from migration
Inclusion of all load module types for migration
Exclusion of specific load module types from migration
Your choice of output.

Menu-Driven Parameter Selection

Dictionary Migrator Assistant (DMA) is menu-driven. You can move easily though DMA, screen-by-screen, to:

Store source dictionary, target dictionary, and starting point values into a parameter file
Access parameter files for examination or modification
Select output that describes migration activities, and thereby obtain up to eight CA IDMS Dictionary Migrator reports
Submit parameters to run CA IDMS Dictionary Migrator and JCL to run CA IDMS Dictionary Migrator.

The DMA screen titles correspond to each of the DMA functions you can select.

Parameter Storage

A parameter file (PARMFILE) database is used to store:

Parameters generated by DMA
Dictionary and starting point values
JCL to run CA IDMS Dictionary Migrator
Any user-defined messages inserted in the JCL.

Storing this information in a database permits quick access to the parameters generated through DMA.

Online Help

Whenever you have a question while viewing any DMA screen, you can obtain online information about the DMA function you are using. Simply type HELP in the command line and press the ENTER key, or press PF1.

When to Review the Output

The reports produced by CA IDMS Dictionary Migrator allow you to verify that the migration will be complete and that you will be able to determine what effect the migration will have on the target dictionary.

Note: For any method, the target dictionary must be backed up before beginning the upload steps.

CA IDMS Dictionary Migrator provides three methods for reviewing the output, and completing the migration by updating the target dictionary.

Method One

The first method allows you to :

Run CA IDMS Dictionary Migrator
Review CA IDMS Dictionary Migrator reports
Upload (update) the syntax files to the target dictionary (if no problems exist).

Method Two

The second method allows you to:

Run CA IDMS Dictionary Migrator using RUN=VERIFY
Review CA IDMS Dictionary Migrator reports
Run CA IDMS Dictionary Migrator using CREATESYNTAX
Upload (update) the syntax files to the target dictionary (if no problems exist).

Method Three

The third method requires advanced preparation and is usually done once during the installation. You can:

Review the User Guide message section and determine which messages reflect critical problems in a migration and would want to start processing
Code the USMSGSVT table (message severity table) listing all the messages that you have identified as critical
Modify the USMTPARM module to STOP AFTER VALD ERROR (STOPVER=Y)
Run CA IDMS Dictionary Migrator
Upload the syntax files to the target dictionary using conditional processing on all upload steps that refer to a return code of less than 8
Review the CA IDMS Dictionary Migrator reports (optional).

Note: Processing would have stopped if any errors occurred that you determine were critical.

The review of CA IDMS Dictionary Migrator reports is only necessary when the job does not run to completion. If all of the steps are processed, you can assume that no critical messages were written to the reports. You still would use the report to see what has been migrated. Method three is only available on systems where the return code checking is possible.

Obtain Reports

When you submit parameters to CA IDMS Dictionary Migrator through DMA, you are directing CA IDMS Dictionary Migrator to perform specific migration-related activities. Also, CA IDMS Dictionary Migrator produces reports with the results of each activity.

Depending on the run that you select from the list on the Specify Migration Output screen, you can obtain a combination of some or all of the following reports:

Parameter Verification Report
Source Dictionary Verification Report
Extract Summary Report
Extract Detail Report
Entity Discrepancy Report
Entity Cross-Reference Report
Syntax Production Report
Syntax Files Display Report
Catalog Navigation Report

Note: For more information about the CA IDMS Dictionary Migrator reports, see the chapter "Reports."

View Syntax for Migration

To provide for easy examination of the parameters generated by DMA, DMA presents a Browse Syntax for Migration screen.

View JCL for Migration

To provide for easy examination and modification of the JCL accompanying the parameters, DMA presents an Edit JCL for Migration screen.

These screens and reports are illustrated in the chapter "Dictionary Migrator Assistant."
