CSE Construction Client

You can override the settings for the communication environment parameters for a build in the CSE Construction Client.

Follow these steps:

1. Select Code, Generate, Cooperative from the Construction Model Selection window to open the Cooperative Application Generation dialog.

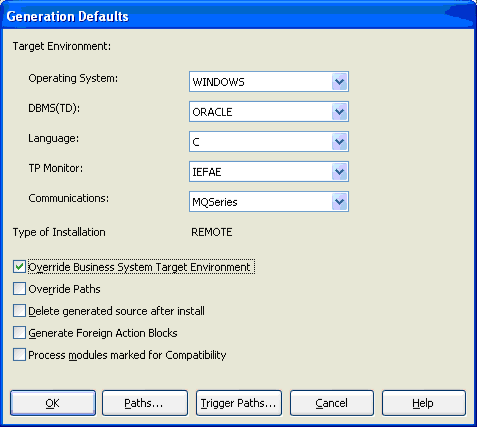

2. Select Defaults to display the Generation Defaults dialog.

   Note: You do not need to select a server manager from the Cooperative Application Generation dialog first. The Defaults selection applies to the complete business system.

3. Set the TP Monitor field. The valid TP Monitor entries based on the operating system you select are as follows:

   Z/OS

   CICS

   IMS

   UNIX

   IEFAE

   Windows

   IEFAE

4. Select the Override Business System Target Environment check box.
5. Select MQSeries in the Communications field.



6. Click OK.
