CATLMS Objects › Summary by User Defined/Updated Field Object

Summary by User Defined/Updated Field Object

The Summary by User Defined/Updated Field object displays a summary of all tapes grouped by the value in the user defined field. The CATLMS catalog controls all of the tapes in the summary. The CATLMS Tape Volume records provide input to this summary.

For each user defined field, this object creates one summary record containing the following information:

• The group name
• The number of tapes in the location
• The percent of the total the group represents
• The total allocated MB
• The average, minimum and maximum allocated space for the tapes in the group
• The total number of files on the tapes (with average, minimum, and maximum values)
• The total number of opens for all the tapes in the group (with average, minimum, and maximum values)
• The total number of tape blocks on all of the tapes in the group (with average, minimum, and maximum values).

Note: For more information on these fields, see the Help About Object online help.

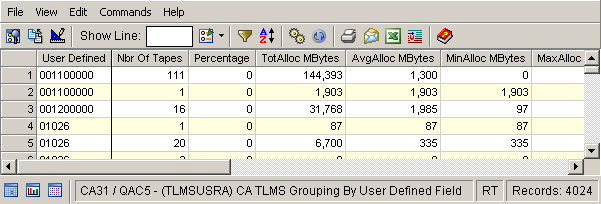

Example: Summary by User Defined/Updated Field

In this example a table view of the summary is displayed by selecting the By User Defined/Updated Field object in the Summaries folder under the CATLMS folder in the Object Tree and clicking the cogs:
