Sample Federation Network

The initial partnership you are creating represents the following sample network:

The Business Partners

• Identity Provider named IdP1
• Service Provider named SP1

SAML Profiles and Features

• SAML 2.0 with POST profile
• Single sign-on
• No signature processing
• FIPS_COMPAT mode

CA SiteMinder® Federation Standalone Deployment Mode

Standalone—no SiteMinder Connector

SSO Service URL at the IdP

http://idp1.example.com:9090/affwebservices/public/saml2sso

Assertion Consumer Service URL at the SP

http://sp1.demo.com:9091/affwebservices/public/saml2assertionconsumer

Note: You need two systems with CA SiteMinder® Federation Standalone installed to implement this sample network.

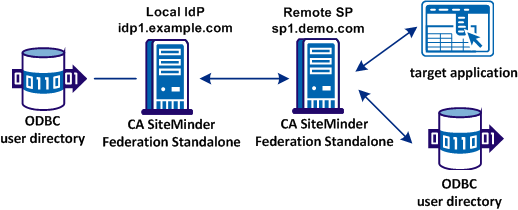

The following figure shows the sample partnership.
