CA Catalyst Trace UI Processing Flow

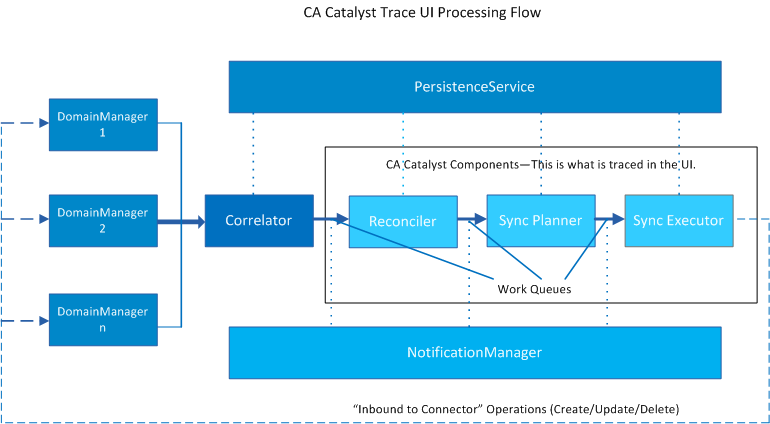

The following diagram shows the processing flow:

This illustration shows the CA Catalyst Trace UI processing flow.

The components in the diagram are explained as follows:

Reconciler: Creates or updates the reconciled view of a CI.
Sync Planner: Creates a synchronization plan based on the changes to the reconciled view.
Sync Executor: Executes the synchronization plan.

The actions that are involved in the process are as follows:

Dequeued: Specifies that the component has taken a notebook off the work queue for processing.
Processed: Specifies that the component has completed working on the notebook.
Error: Specifies that the component has encountered an error while trying to complete work on the notebook.
Retry: Specifies that the component has decided to retry work on the notebook at a later time due to a recoverable error.
Email: Specifies that the component has stopped trying to complete the work, either due to an unrecoverable error or because it has retried a maximum amount of time. By default, a component stops after retrying for 25 minutes, with a retry interval of 1 minute.
