Return User ID Information Parameter List

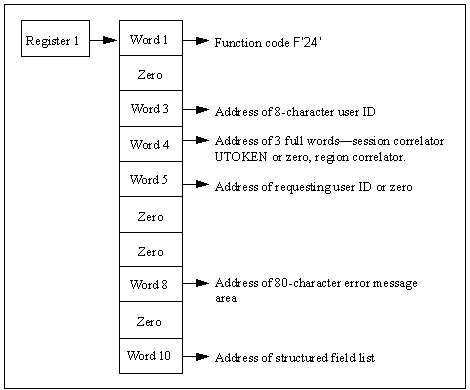

On entry to the security exit, Register 1 points to a list of ten full words, as shown in this diagram.

The diagram shows the parameter list for the Return User ID Information call.

The contents of the parameter list are as follows:

Word 1

Is a fullword containing the address of function code F‘24’.

Word 2

Is set to zero.

Word 3

Is the address of an eight-character field, blank-padded, containing the user ID for which information is required.

Word 4

Is the address of three full words containing the session correlator and the user token (UTOKEN) associated with the user issuing the request (not necessarily the correlator for the user ID whose information is being requested).

Word 5

Is the address of an eight-character field, blank-padded, containing the user ID requesting the information (or zero).

Word 6

Is set to zero.

Word 7

Is set to zero.

Word 8

Is the address of an 82-character area into which the exit can place any error message text if the function request is denied or failed. Any text placed in this area is displayed to the user in response to the command that caused this request. If an error message is returned it must be formatted as follows:

Bytes 00 and 01

Specifies the hexadecimal length of the message text (excluding these two bytes).

Bytes 02 through nn

Specifies the error message text.

Limits: 80 characters

Word 9

Is set to zero.

Word 10

Is set differently depending on the type of exit you have:

Full security exit—if the request is honored, the exit must place in this word the address of a list of full words, terminated by X‘FFFFFFFF’. Each fullword in this list in turn points to a structured field that defines an item of information relevant to the user ID.
Partial security exit—the address of a list of full words, terminated by X‘FFFFFFFF’. Each fullword in this list in turn points to a structured field that defines an item of information relevant to the user ID.

More information:

Structured Fields

Return Codes from Return User ID Information Call

The exit must return a completion code in Register 15 on return. Completion codes are supported as described below. Causes for rejection are identified by error message text returned in the area addressed by word 8 of the Information Call parameter list.

The return codes listed below are the only codes that are accepted in response to an Information Call. Any other return code is treated as information not available.

0: Indicates that information is available. Word 10 of the parameter list points to an address list that provides pointers to structured fields describing the user ID.
4: Indicates that information is not available. An error message should be available in the 80-character area addressed by word 8 of the parameter list.
