(Optional) Add the <ComponentReconciliation> Section

You can define reconciliation algorithms for your custom metric family in the <ComponentReconciliation> section. The reconciliation algorithm is used to support configuration changes for monitored devices. How a device supports a given metric family can be considered its configuration. For example, the number of interfaces and their configuration represent how a device supports the Interface metric family. As changes to the interfaces of a device occur, Data Aggregator must update its representation of those interfaces to help ensure that monitoring is up-to-date. The reconciliation algorithm is applied during this configuration update.

In support of certain metric families, individual components items are created within Data Aggregator. These component items represent the device configuration in support of a given metric family. Using the Interface metric family as an example, Data Aggregator creates port component items to represent each network interface of the device.

The initial discovery and creation of component items occurs when a monitoring profile is applied to the device through a device collection. Subsequent component discoveries occur as necessary to support changes on the monitored device. Upon subsequent component discovery, the reconciliation algorithm is applied to determine the changes that are required to update the set of component items.

When the configuration of a device changes, there are four scenarios to evaluate:

• New components – A device changed such that new component items are required in Data Aggregator.
• Unchanged components – A device configuration change did not alter some existing components, therefore, those component items are unchanged.
• Changed components – A device configuration altered some components, but they still exist. Component items in Data Aggregator must be updated to reflect the new configuration.
• Removed components – A device changes such that one or more components no longer exist on the device. These component items can be deleted or retired.

The reconciliation algorithm defines a set of attributes that can be compared between existing component items and new discovery results. The values of the attributes are compared to determine which new discovery results match existing component items and which represent new or changed components. This comparison produces the following results:

• If a discovery result does not match any existing component items, a new component item is created.
• When a discovery result matches all attributes of an existing component item, the component item is unchanged.
• If a discovery result finds a match, but some attribute values are different, the existing component item is updated with any new attribute values.
• Sometimes, discovery results determine that some existing component items do not match the new results in any way. In this case, those components are determined to no longer exist on the device and can be deleted or retired.

You can define two types of matches in a reconciliation algorithm; ExactMatch and BestofMatch.

ExactMatch

Indicates that a discovery result must match all of the specified attributes of a component item.

Example: ExactMatch Reconciliation Algorithm

The following example shows a reconciliation algorithm that defines an ExactMatch match type:

<ComponentReconciliation>
     <MatchAlgorithmList>
          <MatchAlgorithm>
               <AlgorithmType>Exact</AlgorithmType>
               <MatchAttributeList>
                    <MatchAttribute>
                         <Name>{http://im.ca.com/core}Item.Name</Name>
                    </MatchAttribute>
                    <MatchAttribute>
                         <Name>{http://im.ca.com/inventory}Process.Path</Name>
                    </MatchAttribute>
                    <MatchAttribute>
                         <Name>{http://im.ca.com/inventory}Process.Arguments</Name>
                    </MatchAttribute>
               </MatchAttributeList>
          </MatchAlgorithm>
     </MatchAlgorithmList>
</ComponentReconciliation>

This algorithm indicates that a discovery result must match all three attributes of an existing component item to be an exact match. If an exact match is not found, the following conditions produce these results:

• If any of the three attribute values are different, a new component item is created.
• If the three attribute values match but other attribute values are different, the existing component item is updated with the new attribute values.

BestofMatch

Specifies the least number of attributes that must match to that same number of attributes on an existing component item. Each attribute includes a "required" key. If the "required" key is set to "true," that attribute must be one of the matched attributes.

Example: BestofMatch Reconciliation Algorithm

The following example shows a reconciliation algorithm that defines a BestofMatch match type:

<ComponentReconciliation>
     <MatchAlgorithmList>
          <MatchAlgorithm>
               <AlgorithmType>BestOf</AlgorithmType>
               <LeastMatchCount>2</LeastMatchCount>
               <MatchAttributeList>
                    <MatchAttribute>
                         <Required>true</Required>
                         <Name>{http://im.ca.com/core}Item.Name</Name>
                    </MatchAttribute>
                    <MatchAttribute>
                         <Name>{http://demo/custom}Process.Path</Name>
                    </MatchAttribute>
                    <MatchAttribute>
                         <Name>{http://demo/custom}Process.Arguments</Name>
                    </MatchAttribute>
               </MatchAttributeList>
          </MatchAlgorithm>
     </MatchAlgorithmList>
</ComponentReconciliation>

This algorithm specifies the following requirements:

• A discovery result must match at least two of the listed attributes with an existing component item to be a match. If a BestofMatch match is not found, the following conditions produce these results:
  • If less than two attributes match, a new component item is created.
  • If at least two attribute values match but other attribute values are different, the existing component item is updated with the new attribute values.

    Note: One of the matching attribute values must be the required attribute.

• The "required" key is set to 'true' for the Name attribute. This means that the Name attribute must be one of the three attributes that match.

When a BestOf match algorithm is included in the reconciliation definition, the following results occur:

• If a discovery result matches only one existing component item, the result is a match.
• If a discovery result matches more than one existing component item, the number of matching attributes is considered. The existing component with the most matching attributes is considered the match for the discovery result.

  Note: If the number of matching attributes is the same for multiple components, the matching component item is chosen randomly. As a result, the karaf log records a warning about this condition.

You can add multiple match algorithms to a reconciliation definition. When multiple match algorithms are added, they have match precedence. The match algorithm at the top of the MatchAlgorithmList has the highest precedence. The match type at the bottom has the lowest precedence.

When more than one match type is included in the reconciliation definition, the following results occur:

• If a discovery result matches only one existing component item, that is a match. The algorithm precedence does not matter.
• The algorithm with highest precedence prevails when a discovery result matches more than one existing component items. The match goes to the component item resulting from the highest precedence algorithm.

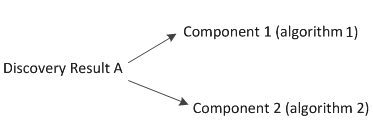

  For example:



  Because algorithm1 has a higher precedence, Discovery Result A matches Component1.

• The algorithm with highest precedence prevails when more than one discovery result matches one existing component item. The match goes to the component item that matches as a result of the highest precedence algorithm.

  For example:



  Because algorithm1 has a higher precedence, Discovery Result A matches Component 1.

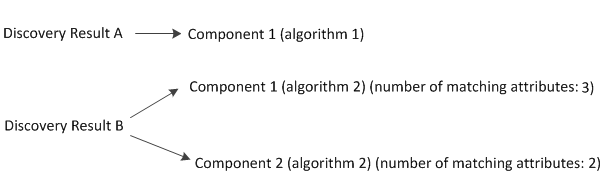

  For example:



  In this example, Discovery Result B matches Component 1 with more attributes than it does with Component 2. Discovery Result A matches Component 1 because it matches with a higher precedence algorithm. Therefore, the match for Component 1 goes to Discovery Result A, and Discovery Result B matches Component 2.

Note: If you do not define a reconciliation algorithm, Data Aggregator uses the Item.Name attribute to match the components.
