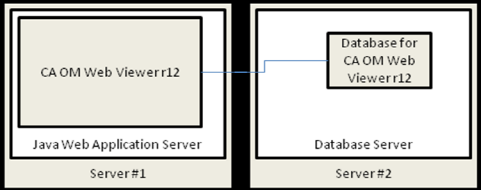

Scenario 3 - Java Web Server and the External Database Server Are on Different Machines

CA OM Web Viewer connects to an external database through the standard JDBC protocol. The external database can be hosted on a computer different from the computer where the Java web server is located.

In this scenario, we have a dedicated database server.

During the installation, choose the external database option and specify JDBC connection information to set up the connection between CA OM Web Viewer and the dedicated database server.
