Example: Graphical Monitor Configuration

The Rich Bank provides banking services in Australia. In Sydney it has branches at George Street and Town Hall, and in Melbourne it has branches at Lygon Street and Flinders Street.

You want to monitor the file transfers between the Sydney and Melbourne offices.

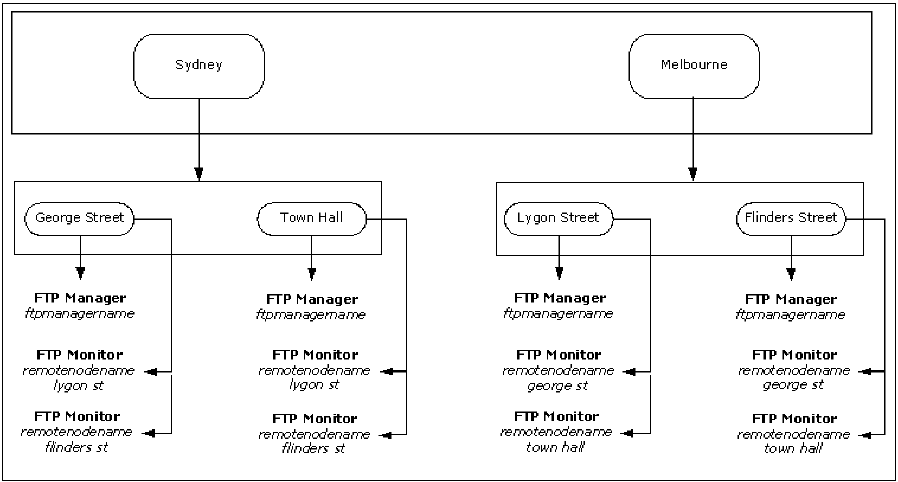

The following diagram illustrates this structure:

To create this structure, you need the following:

• Two icon templates (which can be used for the six icons)
• six resource groups - one each for Sydney, Melbourne, and all of the branches
• Three icon panels
