DRECLINE (diagram record line) allows you to globally specify the format (text) of the record block in the data structure diagram. The format of a record block is defined as one or more lines containing one or more record definition field names.
The format of the record block in the data structure diagram is controlled by default unless you use the DRECLINE statement. Exhibit 2.4 shows an example of a record block in the four line default format.
Exhibit 2.5 at the end of this section, lists all possible field names that you can enter in a DRECLINE statement, including the CA IDMS/DB Analyzer statistics field names and their descriptions.
Note: DRECLINE is a global parameter statement. Once specified, it modifies every record block in the data structure diagram. For compatibility with earlier versions of CA IDMS Schema Mapper, any RECLINE statements in the input file are treated as DRECLINE statements, and CA IDMS Schema Mapper issues a warning message.

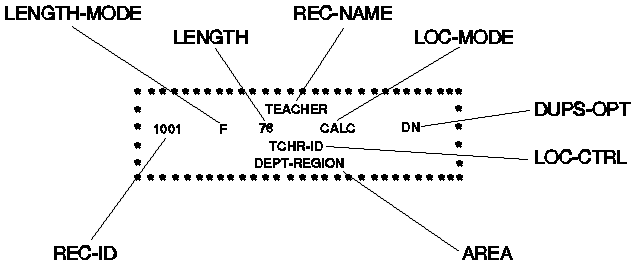

Exhibit 2.4: Default Record Block with Field Names in a Four Line Format
|
