The CA IDMS DQF Session › Using the Menus › Accessing an Information Screen

Accessing an Information Screen

To access a detail or cross-reference information screen from a second level menu, type:

• A three-letter code in the OPTION field (from the codes listed on the second level menu screen);
• The name of an entity in the NAME field if you requested BAS or SYN in the OPTION field; and
• The version number of the entity in the VERSION field (if a version number is applicable).

Press Enter. The RECORD/ELEMENTS cross-reference screen displays.

The following display shows an alphabetical list of the dictionary entities, with their codes in the left column. The options on each second level menu are also listed under Valid Choices in the exhibit.

DQF Rnn.nn ---  RECORD / ELEMENTS  ------------------  CA, INC. hh:mm mm/dd/yy
OPTION ===> REC.ELE                                           PAGE     1 OF  13

NAME   ===> ADSO-APPLICATION-GLOBAL-RECORD                    VERSION ===>    1

LEVEL  NAME                          PICTURE        USAGE   LENGTH START  S/P/U
01    ADSO-APPLICATION-GLOBAL-RECORD                           653
  03  AGR-APPLICATION-NAME           X(8)           DISPLAY      8     1
  03  AGR-CURRENT-FUNCTION           X(8)           DISPLAY      8     9
  03  AGR-NEXT-FUNCTION              X(8)           DISPLAY      8    17
  03  AGR-CURRENT-RESPONSE           X(8)           DISPLAY      8    25
  03  AGR-DEFAULT-RESPONSE           X(8)           DISPLAY      8    33
  03  AGR-TASK-CODE                  X(8)           DISPLAY      8    41
  03  AGR-EXIT-DIALOG                X(8)           DISPLAY      8    49
  03  AGR-PRINT-DESTINATION          X(8)           DISPLAY      8    57
  03  AGR-DATE                       X(8)           DISPLAY      8    65
  03  AGR-USER-ID                    X(32)          DISPLAY     32    73
  03  AGR-SECURITY-CODE              X(32)          DISPLAY     32   105
  03  AGR-INSTALLATION-CODE          X(32)          DISPLAY     32   137
...CONTINUED



            PF3= END   PF4= MAIN MENU   PF7= UP   PF8= DOWN

Exhibit 3.7: Accessing an Information Screen

Main Menu Entity Description   Detail           Cross-Reference
Selection
APP       APPLICATION          BAS
ATT       ATTRIBUTE            BAS              ELE  FIL  MOD  PRO  QFI  REC
CLA       CLASS                BAS
DIA       DIALOG               BAS  LST         MAP  PRC  REC
ELE       ELEMENT              BAS  SYN         MAP  REC
FIL       FILE                 BAS              REC

LOA       LOAD MODULE          BAS
MAP       MAP                  BAS  LST         DIA  ELE  REC  TAB
MOD       MODULE               BAS  LST         PRO
PRC       PROCESS              BAS  LST         DIA
PRO       PROGRAM              BAS  LST         FIL  MOD  PRO  REC
QFI       QFILE                BAS  LST
REC       RECORD               BAS  LST  SYN    DIA  ELE  FIL  MAP  PRO  SSC

SCH       SCHEMA               BAS  LST         ARE  REC  SET  SSC
SEG       SEGMENT              BAS              ARE  DIA  FIL
SSC       SUBSCHEMA            BAS  LST         DIA  LRF  PRO  REC  USE
SUB       SUBSYSTEM            BAS
SYS       SYSTEM               BAS
TAB       TABLE                BAS  LST
USE       USER                 BAS

Exhibit 3.8: Option Codes and Valid Combination Choices

Additional Detail and Cross-Reference Option Descriptions:

• ARE AREAS
• BAS BASIC INFORMATION Default option from second level menu
• LRF LOGICAL RECORDS
• LST SELECTION LIST
• SET SETS
• SYN SYNONYMS

Commands:

• BYE (clears CA IDMS DQF scratch records)
• RETURN
• UP
• DOWN

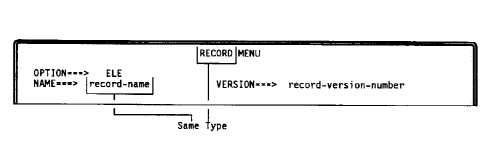

To jump to any information screen, enter:

code.code    name    version
