Task Processing Support

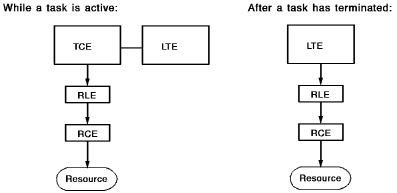

The following diagram shows the resources in use while a task is active (left diagram) and those in use after the task (right diagram) terminates.

Example

Displaying Internal Resources

The following DC/UCF master terminal functions display the internal resources used to support task processing:

DCMT DISPLAY ACTIVE TASK displays global statistics on active tasks and information on each active task thread.
DCMT DISPLAY STATISTICS SYSTEM displays information about the system including the peak task control element (TCE) stack; and the maximum number of resource link elements (RLEs), resource control elements (RCEs), and deadlock prevention elements (DPEs) used by the tasks.
