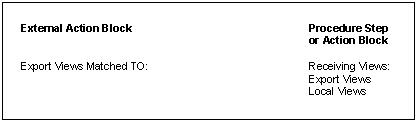

The export views of the External Action Block are matched to the receiving views from the procedure step or action block as illustrated by the following figure. (This is the data returned to the procedure step or action block.) The receiving views in the procedure step may be export views or local views.

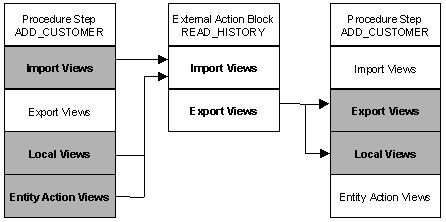

The following illustration explains the possible supplying and receiving views for view matching in the Procedure Action Diagram. In this figure, the Procedure Step ADD_CUSTOMER calls (uses) the External Action Block
READ_HISTORY.
When you have matched the import and export views of the External Action Block, the USE statement is complete. The procedure used to match the views is described in Design. The USE statement appears in the action diagram of the procedure step or action block. For more information, see the Design Guide.

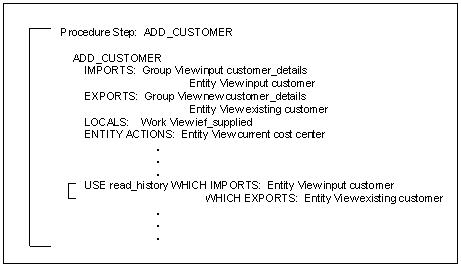

The following illustration shows a portion of the action diagram for the procedure step ADD_CUSTOMER. This procedure step uses the External Action Block READ_HISTORY.
|
