Components of a Typical CA Gen Tuxedo System › Components Involved in Server-to-Server Flow

Components Involved in Server-to-Server Flow

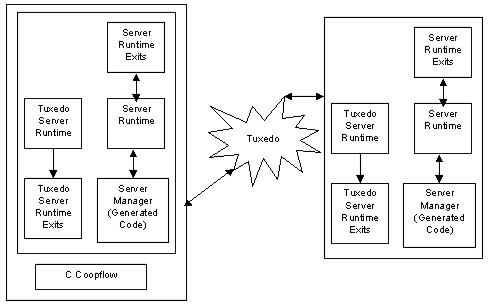

The following illustration shows the components involved in processing a server‑to‑server Tuxedo cooperative flow.

Server 1 Server 2

Components involved in processing a server to server Tuxedo cooperative flow.

This illustration shows the flow from one server manager to another server, hence the name server-to-server. The behavior of the server that initiates the flow is identical to that of the Windows client. A comparable component, Communications Runtime for Tuxedo, is added to the set of server components to process the flow initiated by the server that is now behaving as a client. The set of components of the target server remain the same as those that are involved in a client-to-server flow.
