Dialog Flow Example

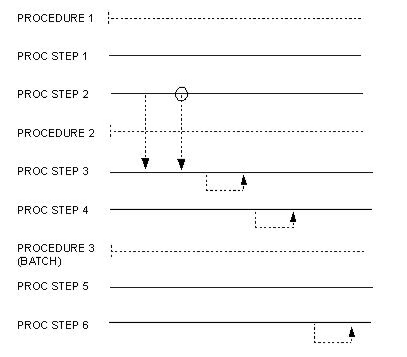

The following illustration shows a DLG with the following types of internal flows from online and batch procedures:

• A transfer between two online procedure steps
  • (PROC STEPS 1 and 3)
• A link between two online procedure steps
  • (PROC STEPS 2 and 3)
• An online procedure with a self-referencing transfer
  • (PROC STEP 3)
• An online procedure with a self-referencing link
  • (PROC STEP 4)
• A batch procedure with a self-referencing transfer
  • (PROC STEP 6)
