Redraw

Both the tools, Structure Chart and Action Block Usage, let you redraw the Structure Chart or Action Block Usage diagram in different ways.

You have the following display options for Structure Chart and Action Block Usage Tools:

Option	Description
Box height	Lets you display an action block as a box with 1, 2, or 3 lines per box
Inverted display	Lets you toggle the direction of the chart.
Chart/diagram type	Lets you display an action block as a box with 1, 2, or 3 lines per box.

After you select a diagram placement scheme, CA Gen immediately redraws the chart according to your selections, as shown in the following figures.

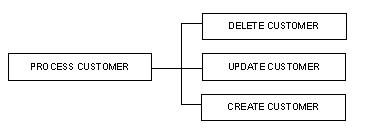

This diagram shows a Horizontal Structure Chart:

Horizontal Structure Chart

This diagram shows an Indented List Structure Chart:

Indented List Structure Chart

This is a Vertical Structure Chart:

Vertical Structure Chart
