CA Endevor SCM Logical Structure

CA Endevor SCM helps to manage the software lifecycle by providing a consistent and flexible logical structure for classifying software inventory. There are six components to this inventory structure: environments, stages, systems, subsystems, types, and elements. Environments, stages, systems, subsystems, and types are set up by the CA Endevor SCM administrator. Users act on elements. The following information defines these terms.

Environment

Functional areas within an organization. For example, there might be separate development and production environments. There is no limit to the number of environments that may be defined.

Stage

The stages in the software lifecycle. Each environment always has one or two stages. Each stage is assigned a unique name and ID, representing their place in the lifecycle. For example, TEST and an ID of 1, or QA and an ID of 2. Stages are referred to in this manual as Stage 1 (the first stage in an environment) and Stage 2 (the second stage in an environment). Stages can be linked together to establish unique promotion routes for program inventory within and between environments. These routes make up the map for a site.

System

The applications at a site. For example, there might be financial and manufacturing applications. A system must be defined to each environment in which it is used.

Subsystem

A specific application within a system. For example, there might be purchase order and accounts payable applications within the financial system. Keep in mind that:

• There must be at least one subsystem per system. A subsystem must be defined to each system in which it is used. For example, to create subsystem PO within system Finance in the environments TEST, QA, and PROD, you must define subsystem PO in each environment.
• A subsystem can have the same name as the system to which you define it.

Type

Categories of source code. For example, you might create the following types:

• COBOL—for COBOL code
• COPYBOOK—for copybooks
• JCL—for JCL streams

You must define a type to each stage in which you want to use it.

Element

Partitioned data set (PDS) members, CA Panvalet members, CA Librarian members, or sequential data sets that have been placed under control of CA Endevor SCM. By default, the element name is the member name. Each element is classified by system, subsystem, and type. Its environment and stage determine its location in the software lifecycle.

The Inventory Structure

The CA Endevor SCM inventory structure allows you to do the following:

• Work with program modules without having to know where they are physically located, or how they are compiled.
• List all the program components that make up an application, regardless of type.
• Determine the location(s) of an element simply by entering the element name on a display screen.
• Act on a cross section of your program inventory. For example, CA Endevor SCM allows you to list all COBOL code in your shop, or promote an entire new release of the payroll application with a single command.

How to Set Up the Inventory Structure

The CA Endevor SCM administrator builds an inventory structure based on the stages in your site's software lifecycle. There are six steps in setting up an inventory structure:

1. Determine the stages in the software lifecycle.
2. Decide which stages should be put under the control of CA Endevor SCM.
3. Define two-stage environments based on the decisions in Steps 1 and 2, and link these environments and stages together to form a map.
4. Define applications (systems) for each stage.
5. Define specific applications (subsystems) within each system.
6. Define the types of code present at each system stage and the processing required for each.

Determine the Lifecycle Stages

Software lifecycles are site-specific. For this example, consider a five-stage lifecycle:

DEV       UNITTEST   QA   EMER     PROD

Determine the Stages for CA Endevor SCM Control

You can decide to put some or all of the stages in your lifecycle under control of CA Endevor SCM. In this example, assume the last four stages of the lifecycle are under the control of CA Endevor SCM:

UNITTEST   QA   EMER     PROD

This means that program development takes place outside of CA Endevor SCM.

While this is a fairly typical lifecycle, keep in mind that CA Endevor SCM can be adapted to any lifecycle.

Define the Environments

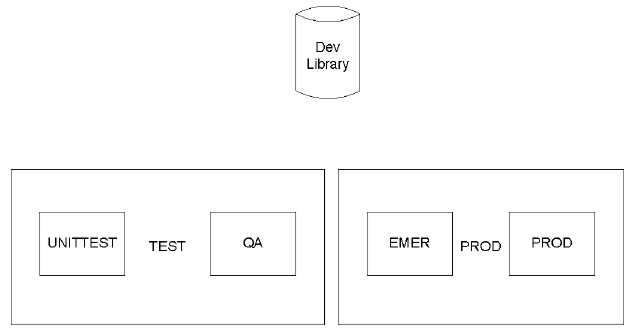

Environment is the CA Endevor SCM term for functional areas in your organization. In this example, assume that the UNITTEST and QA stages in the lifecycle are part of the development function, and that production applications and their maintenance are part of a function called production. The administrator defines environment TEST to include Stages UNITTEST and QA, and a second environment called PROD, that includes Stages EMER and PROD. Development activities take place in a development library, outside of CA Endevor SCM. This is illustrated by the following diagram:

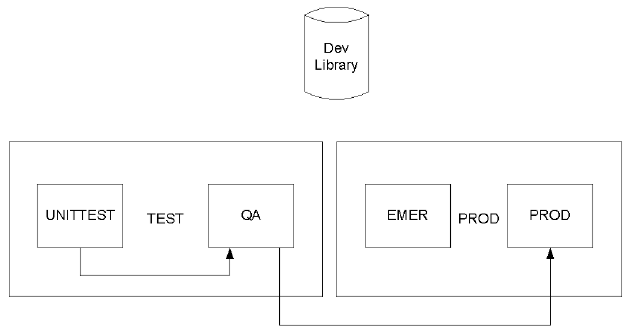

The CA Endevor SCM administrator might decide to establish the following route (environment map) for inventory at this site that promotes inventory from Stage UNITTEST to Stage QA to Stage PROD, as illustrated in the following diagram:

Emergency fixes would be moved from stage EMER to stage PROD.

Define the Systems

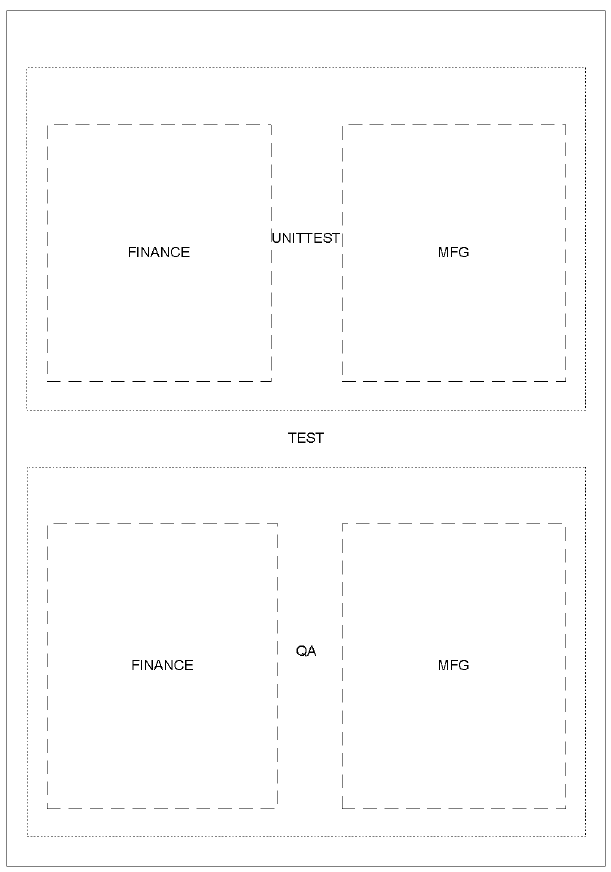

You must define a system to each environment in which you plan to use it. There are two systems in this example: FINANCE and MFG (manufacturing). This is illustrated by the following diagram:

Define the Subsystems

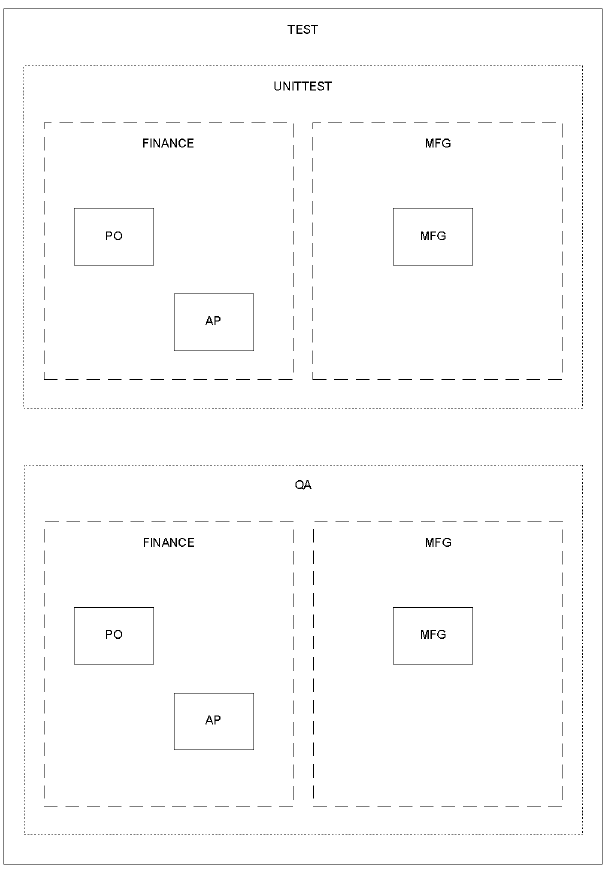

You must define at least one subsystem for each system. In this example, system FINANCE has two subsystems: PO and AP. System MFG one subsystem, MFG. This is illustrated by the following diagram:

Define the Types

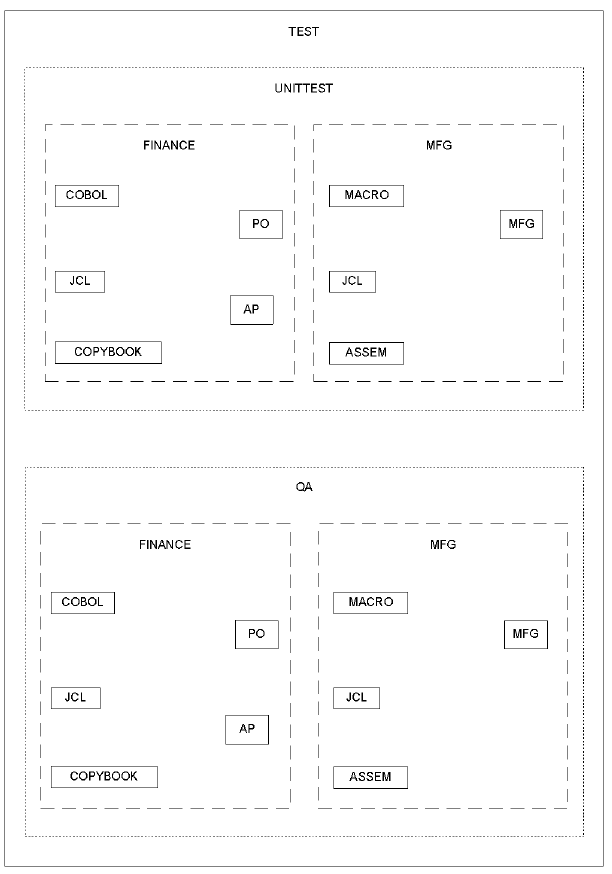

You must define types to each system/stage combination in which you plan to use them. All subsystems defined to a system can use the types defined to that system. You must define types at each stage in an environment. In this example, system FINANCE has available the types, COBOL (COBOL code), JCL (JCL streams), and COPYBOOK (copybooks). System MFG has available the types, ASSEM (Assembler code), JCL, and MACRO (Macros). This is illustrated by the following diagram:

Classify Elements

CA Endevor SCM classifies elements according to the inventory structure you set up. Each element is described uniquely in terms of its:

• Location in the software lifecycle. This is determined by the environment and stage where it resides.
• Inventory classification. This is determined by the system, subsystem, and type with which it is associated.

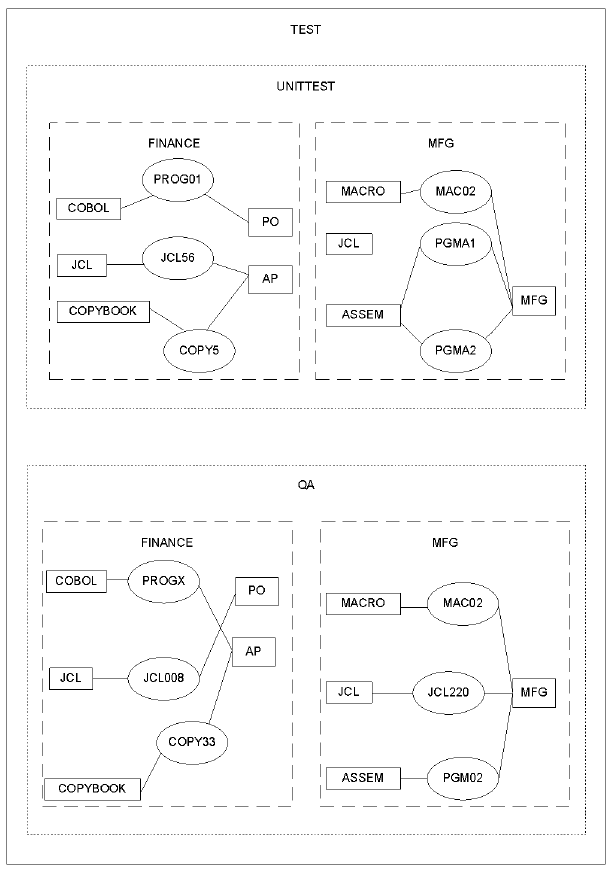

This is illustrated by the following diagram:

For example, in the previous diagram, elements are classified as follows:

Querying the CA Endevor SCM Structure

The CA Endevor SCM classification scheme allows users to produce lists of elements by environment, stage, system, subsystem, type, or any combination of these categories. For example, using the preceding example, you could query the system for the following lists:
