With the CTG CA SYSVIEW tracer, you receive metrics concerning CTG calls made by the application that was instrumented with the tracer. These blame-point metrics are known as backends of the front-end metrics. They also appear on the triage map.
The back-end metrics for the sockets (host/port pairs) used to communicate with the CTG server also appear. The CTG back-end metrics also appear under Called Backends for any front ends that call it.
Participation in the Application Map is as a back end with the same naming convention for the vertex.
On the Workstation Triage Map, you can view the back end by selecting the front end that calls it. A front end must be generated to see this back end. Some pbd must define front-end metrics for some method that in turn calls the method com.ibm.ctg.client.JavaGateway.flow().

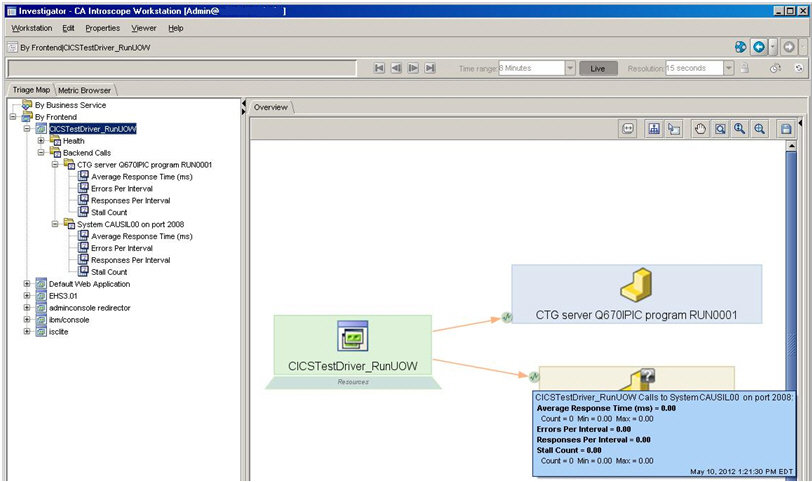

The circular green icons (at which the arrows point) indicate that metrics exist. These metric icons can be used to access blame point metrics for the call to the method com.ibm.ctg.client.JavaGateway.flow(). These metric icons appear only when the application is up and the agent is connected to the EM. Mouse over the metric icon, and the metrics appear.
|
