DB2 z/OS CPU Activity Dashboard

This dashboard displays the following information for each monitored DB2 for z/OS subsystem:

• Total DB2 CPU Percentage
• MSTR CPU Percentage
• DBM1 CPU Percentage
• IRLM CPU Percentage
• MSTR CPU Usage (CP and zIIP)
• DBM1 CPU Usage (CP and zIIP)
• IRLM CPU Usage (CP and zIIP)
• DDF CPU Usage (CP and zIIP)

For more information, see CA Cross-Enterprise APM Metrics.

To view the dashboard, from the CA Introscope console, select Cross-Enterprise APM: DB2 z/OS CPU Activity from the Dashboard drop-down list.

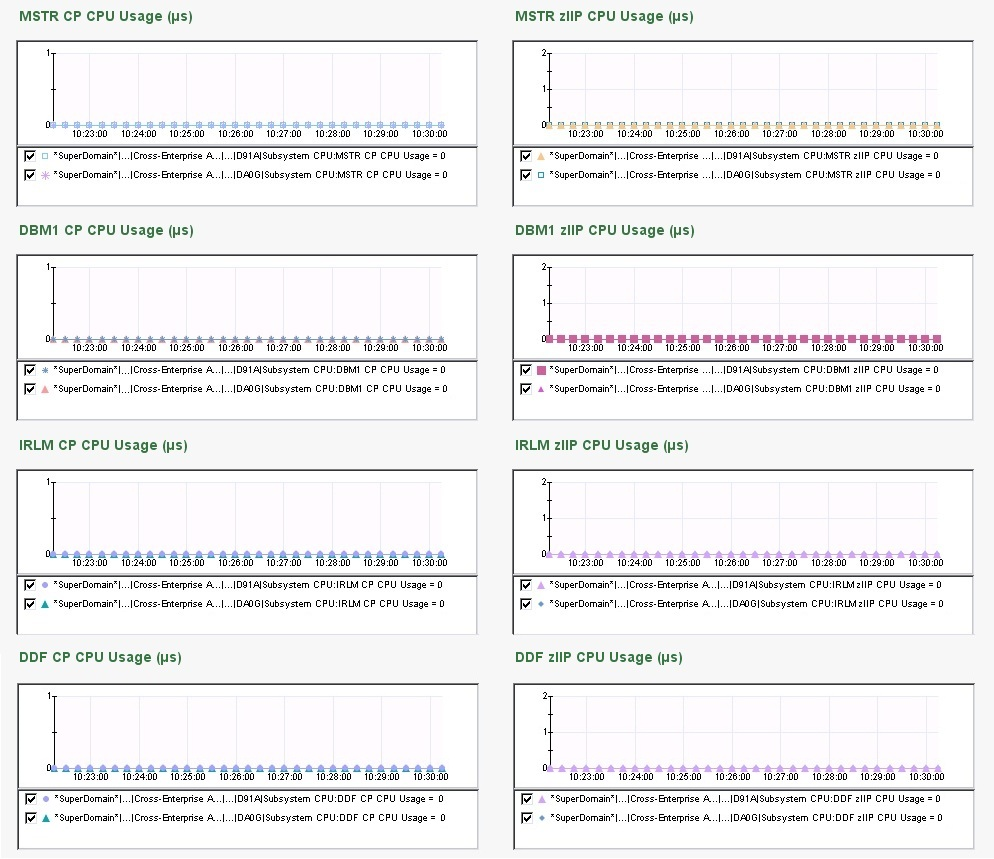

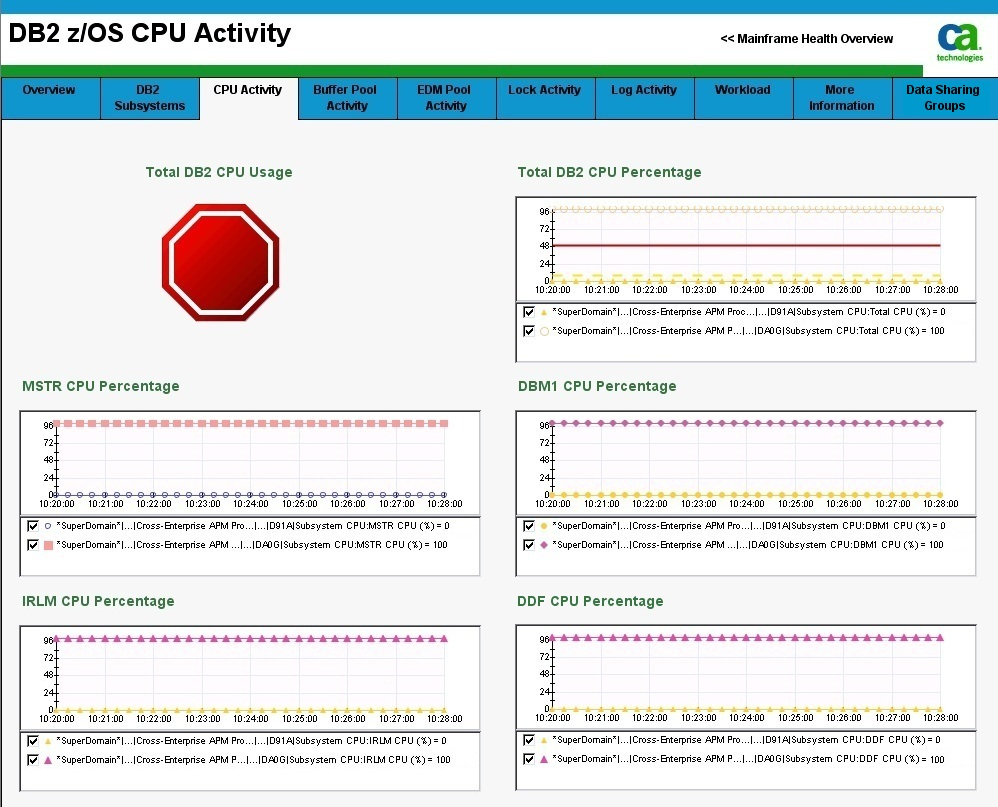

The DB2 z/OS CPU Activity dashboard opens:
