CA Chorus offers an intelligent management interface enabling greater productivity and simplified knowledge sharing. CA Chorus transforms how administrators:
Each CA Chorus discipline represents the domain of management that exists in your data centers. Therefore, within each discipline, you decide which IT roles your staff assumes. Each discipline offers the following usability features:
This guide details common behaviors. For discipline-specific information, see the applicable User Guide.

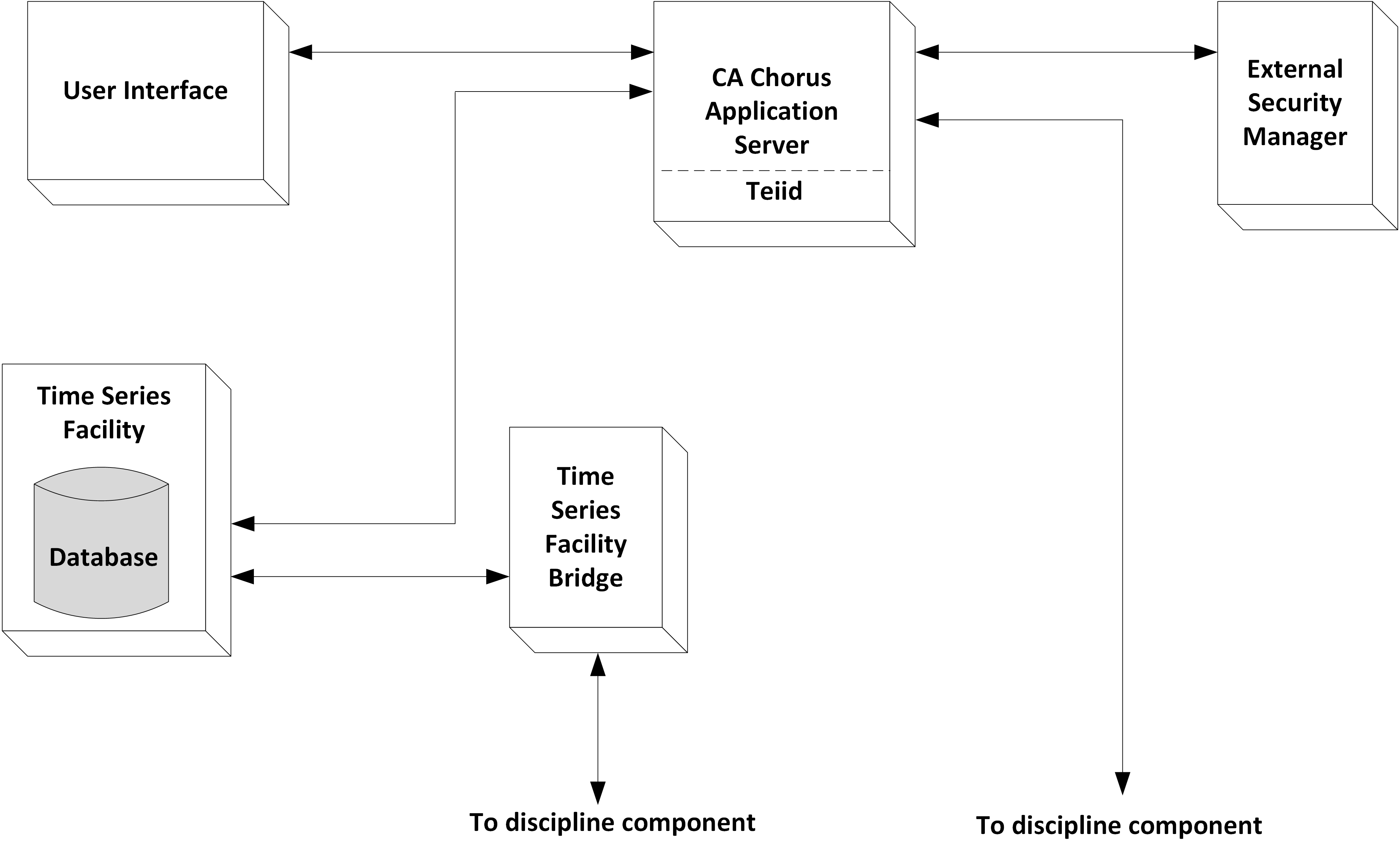

The following diagram details the architecture and data flow for CA Chorus components:
The following list details the components and products that you use with CA Chorus:
Provides product access using a browser (Firefox or Internet Explorer). The user interface (UI) uses SQL queries to fetch data using Teiid and different data sources.
Hosts the CA Chorus application. This server is a Java-based application server that operates cross-platform.
Translates data source content for the CA Chorus Application Server. Teiid is a data virtualization system that lets applications use data from multiple, heterogeneous data stores. Teiid includes tools, components, and services for creating and executing bi-directional data services. Through abstraction and federation, data is accessed and integrated in real time across distributed data sources. This process occurs without copying or otherwise moving data from its system of record.
Stores data that the CA Chorus products collect and provide. The TSF provides a single point for collection, storage, management, and organization of product performance and other TSF data.
Allows TSF client requests to send and store data into the TSF Server.
Protects resources and access rights to CA Chorus and its disciplines. Each discipline interoperates with CA ACF2, CA Top Secret, and IBM RACF to provide user ID, resource access, and PassTicket security.
|
