Architecture and Installation Overview

CA Chorus Infrastructure Management Architecture

Using CA Chorus Infrastructure Management, you can analyze the z/OS system and network performance from a single interface.

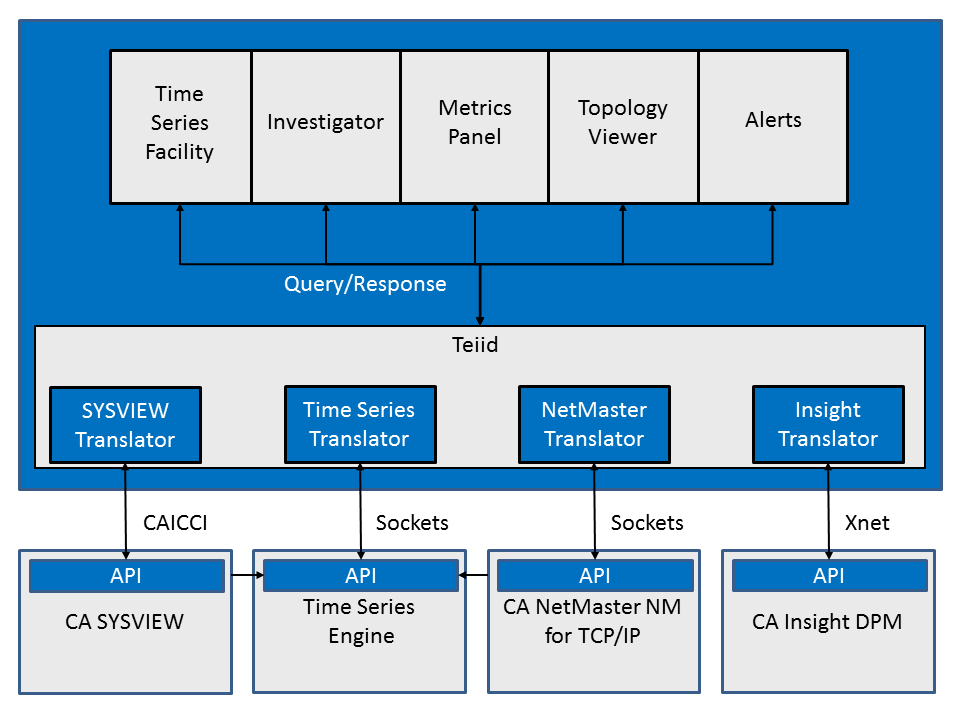

The following diagram details the architecture and data flow for CA Chorus Infrastructure Management components:

This diagram shows the CA Chorus Infrastructure Management architecture. The diagram shows data flow from the backend-products to CA Chorus.

The following list details the components and products that you use with CA Chorus Infrastructure Management:

CAICCI: Is a CA Common Services service that provides a software communications layer. CA SYSVIEW uses this layer to pass data to CA Chorus.
Xnet: Provides a communications subsystem for [set the idpm variable for your book]. Xnet (Execution Manager Networking) executes as a started task in its own address space. [set the idpm variable for your book] uses this subsystem to pass data to CA Chorus.
[set the idpm variable for your book]: Lets you monitor the DB2 activity and performance.
CA NetMaster NM for TCP/IP: Lets you monitor the network activity and performance.
CA SYSVIEW: Lets you monitor the system activity and performance.
Teiid: Is a data virtualization system that allows CA Chorus to use data from multiple, heterogeneous data stores through translators.
