CA Chorus for DB2 Database Management lets you perform various database administration and performance management operations on mainframe databases from a single console.

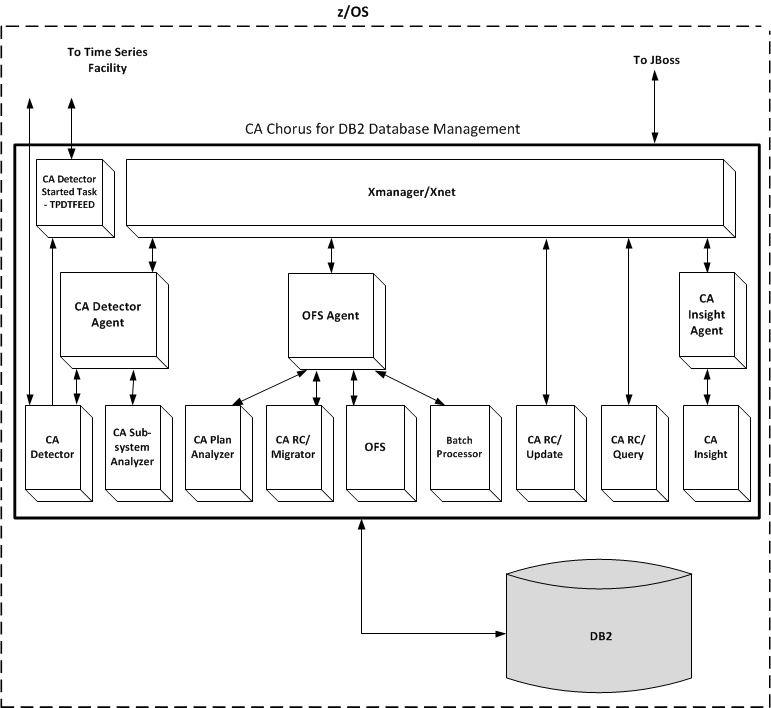

The following diagram details the architecture and data flow for the discipline components:
The following list details the components and products that you use with this discipline:
Hosts the CA Chorus application. JBoss is an open source Java-based application server that operates cross-platform. JBoss is usable on any operating system that supports Java.
Supplies the database for CA Chorus for DB2 Database Management usage.
Invokes the CA Detector Unload utility to gather and send DB2 performance data to TSF. This component starts only by automation, and it is not a permanent address space. This component is a short-running started task that stops after it transfers DB2 performance data to TSF.
Establishes and controls an execution environment for all products. Xmanager (Execution Manager) executes as a started task in its own address space by all products on a single LPAR. If you have products that are installed on multiple LPARs, repeat the customization steps on each LPAR.
Provides a shared communications subsystem for all CA Database Management Solutions for DB2 for z/OS. Xnet (Execution Manager Networking) executes as a started task in its own address space. Xnet works with the Xmanager address space for CA Database Management Solutions for DB2 for z/OS.
Provides the tools for you to manage your DB2 environment. CA Chorus for DB2 Database Management interfaces directly with the following products:
Translates communications among CA Chorus, CA Chorus for DB2 Database Management, and CA Database Management Solutions for DB2 for z/OS products.
Indicates the IBM DB2 for z/OS version that you are using with CA Chorus and CA Chorus for DB2 Database Management.
|
