Communication and Management

Users can communicate with CA XCOM Management Center by using its website, to schedule data transfers and access to history records.

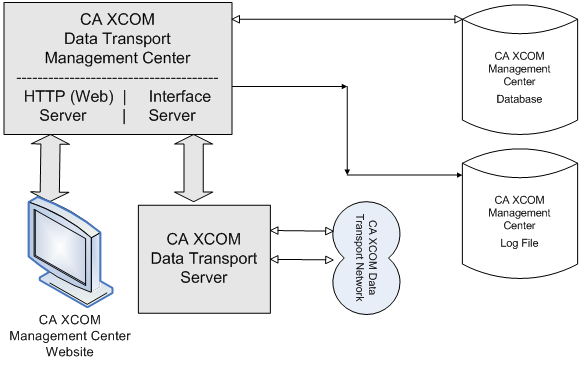

The CA XCOM Management Center server contains and communicates with the following parts:

• Relational database tables
• HTTP server
• CA XCOM Interface Server



Relational Database Tables

The CA XCOM Management Center uses a set of relational database tables to save and handle the data related to the operation of the interface. Through these database tables, the users and servers defined to the system are grouped and the user’s authorization for different functions is defined.

The following database tables are used internally by CA XCOM Management Center:

• Users
• Groups
• User-Group-Subscription
• Servers
• Server-Group-Subscription
• Servers
• Configuration

HTTP Server Component

The HTTP Server also hosts the CA XCOM Management Center website, which provides the ability to perform functions such as schedule transfer access to history records and CA XCOM Management Center administration.

CA XCOM Interface Server

The CA XCOM Interface Server performs the following services:

• Schedules a set of transfers for processing by CA XCOM Data Transport.
• Acts as a bridge, providing communication and connectivity between CA XCOM Management Center and a local CA XCOM Data Transport server.

CA XCOM Data Transport Server

Performs the transfer of requests and responses between the CA XCOM Management Center server and other servers in the CA XCOM Data Transport network.
