Top Enterprise Protocols by Volume

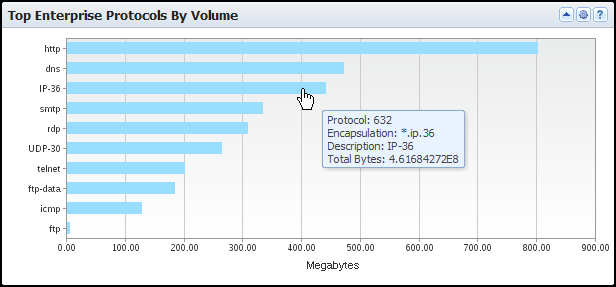

The Top Enterprise Protocols by Volume view in CA Performance Center is a graph summary of the protocols with the highest volume of network traffic across the enterprise.

The view includes the following information for up to 10 top protocols that were used during the reporting period:

Protocol

Identifies the protocol by its keyword (Y-Axis).

Volume

Measures the total amount of data associated with the protocol (for example, in number of megabytes) (X-Axis).

By default, views and reports show the most recent 24 hours of data.

To see the Top Enterprise Protocols by Volume view in CA Performance Center,go to one of the following locations:

• Infrastructure Overview dashboard
• Management: Network Overview dashboard
• Summary-type view in a custom dashboard

Available Actions for This View

You can perform several actions in this view, including the ones in the following list:

• Change the view name and the context (the protocols that can be used in the view) by editing the view settings.
• Display additional Tooltip details by holding your cursor over a host bar: Protocol name, encapsulation name, description, and volume.
• Click a protocol name or bar to open related views in CA Network Flow Analysis.

Find the Comparable View in the NFA Console

The Top Enterprise Protocols by Volume view in CA Performance Center is similar to the Top Protocols view on the Enterprise Overview page in CA Network Flow Analysis.
