Monitoring and Diagnosing DB2 Network › How You Display DB2 Address Space Information

How You Display DB2 Address Space Information

To display information about all DB2 address spaces on the system, select the AS (DB2 Address Space Information) option from DB2 for z/OS Network Information Center menu. The following example shows the displayed information over several screens using the F11 (Right) function key.

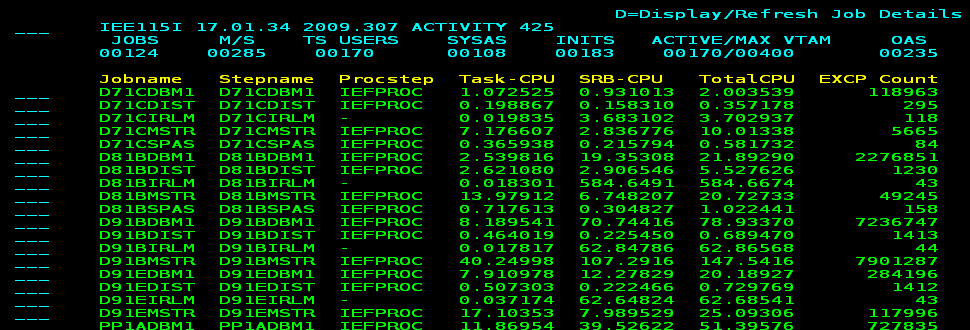

The screen capture shows information such as CPU time and the number of execute channel program calls.

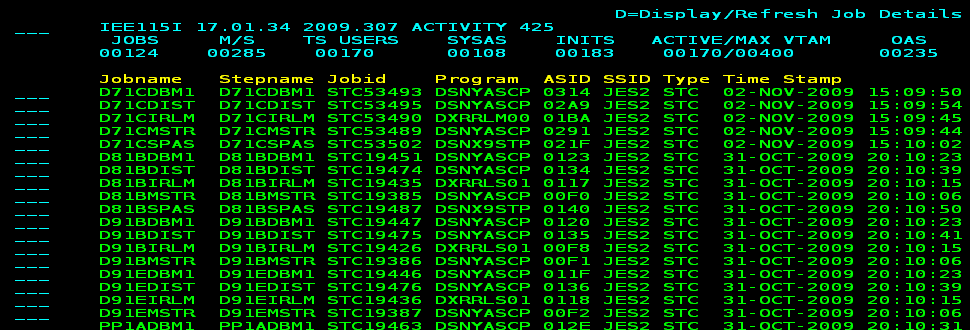

The screen capture shows information such as job ID, program name, and address space ID.
