The M0 schema contains the ABSTRACT_OBJECT table. This table, based on the Abstract_Object class, has a row for every object in the model that is not marked as Tag_Is_Internal. The following table describes the columns in the ABSTRACT_OBJECT table:
|
Column Name |
Data Type |
Description |
|---|---|---|
|
ID@ |
INTEGER |
The ID of the object in the model. This is the short ID of an object, which is unique in the model, but may change from session to session. |
|
TYPE@ |
INTEGER |
The class ID of the object. |
|
OWNER@ |
INTEGER |
The ID of the owning object. |
|
NAME |
VARCHAR |
The name of the object. For a dual object, this will be the logical name. |
|
LONG_ID |
CHAR(67) |
The long ID of the object. This is the permanent ID assigned to each object in a CA ERwin DM model. |
You can use a query similar to the following to see a list of the types and names of all objects in the model.

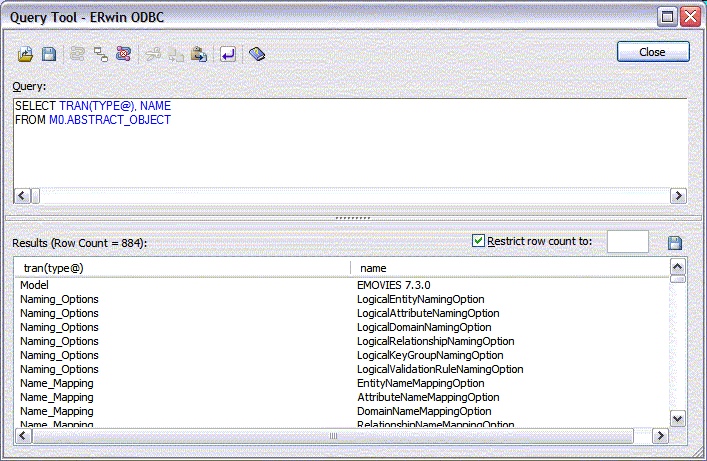

Example: Query for returning the list of types and names of all model objects
Note: The TRAN() function is described in the Functions section.
