This application works with the BCK appliance to enable applications to backup or restore a copy of themselves using remote services such as Amazon Simple Storage Services (S3), Nirvanix, Layerd Technologies DynaVol, ftp and sftp.
Important: The BackupHelper application is provisioned by the BCK appliance and is not intended to be provisioned or configured manually, either by regular users or maintainers.
Properties
|
Property Name |
Type |
Description |
|
in_ip |
IP |
IP address which provides monitoring services to the web interface of the BCK appliance. This property is mandatory |
|
out_ip |
IP |
IP address for the external interface used to access the grid controller. This property is mandatory. |
|
netmask |
IP |
Netmask for the network on which in_ip and out_ip reside. Default: 255.255.255.0 |
|
gateway |
IP |
Address of IP gateway used to route traffic. This property must be specified to access hosts outside of the IP network on which BackupHelper is running. This property is mandatory. |
|
dns1 |
IP |
Primary DNS server for BackupHelper. This property is mandatory. |
|
dns2 |
IP |
Secondary DNS server for BackupHelper. Default: empty. This property is optional. |
|
env |
String |
Reserved for use by BCK and BackupHelper. |
Resources
|
Resource |
Minimum |
Maximum |
Default |
|
CPU |
0.3 |
40 |
0.3 |
|
Memory |
320 MB |
68 GB |
320 MB |
|
Bandwidth |
4 Mbps |
8 Gbps |
50 Mbps |
User Volumes
None.
Application Volumes
The BackupHelper application has the following volume:
|
Volume |
Description |
|
content |
File system containing scripts, logs and web interface. This volume should not be modified. |
Application Architecture
BackupHelper has the following components:

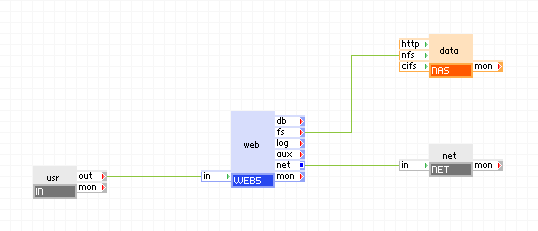

The application infrastructure is shown below:
Open source and 3rd party software used inside of the appliance
BackupHelper includes the following 3rd party open source packages on its content volume.
|
Software |
Version |
Modified |
License |
Notes |
|
Nirvanix API PHP functions |
N/A |
Yes |
Nirvanix Public License |
homepage |
|
phps3tk S3 PHP functions |
N/A |
Yes |
MIT |
homepage |
|
PEAR.php |
1.6.2 |
No |
PHP license v3.0 |
PEAR package from PEAR |
|
HMAC.php |
1.0.1 |
No |
PHP license v3.0 |
Crypt_HMAC package from PEAR |
|
Request.php |
1.4.1 |
No |
BSD |
Request package from PEAR |
|
Socket.php |
1.0.8 |
No |
PHP license v2.02 |
Net_Socket package from PEAR |
|
URL.php |
1.0.15 |
No |
BSD |
Net_URL package from PEAR |
