Move from a Field to a Structure

• The array is the output of the *CVTVAR function.
• To ensure that the array index is not corrupted by the move, the array must be defined as a single-element array.
• The *CVTVAR function is implemented as a MOVEL operation from the field to the data structure (array). Blanks are moved to the array element before the data is moved.

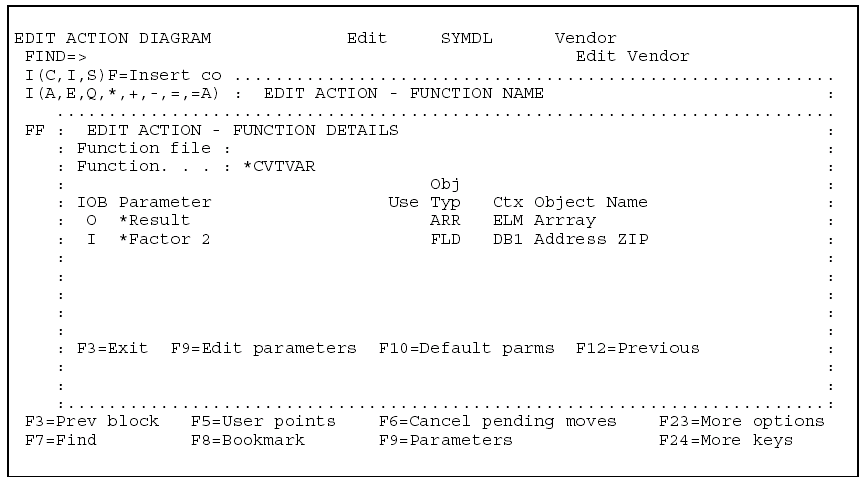

Here is an example of how this operation might look in an action diagram.
