Edit File Details

The Edit File Details panel is where you add new access paths to your model, modify existing access paths, or view the list of the existing access paths for a selected file.

  1. Zoom into the file. Type Z next to any relation for the selected file on the Edit Database Relations panel and press Enter. Alternatively, select option 2 from the Edit Model Object List panel.

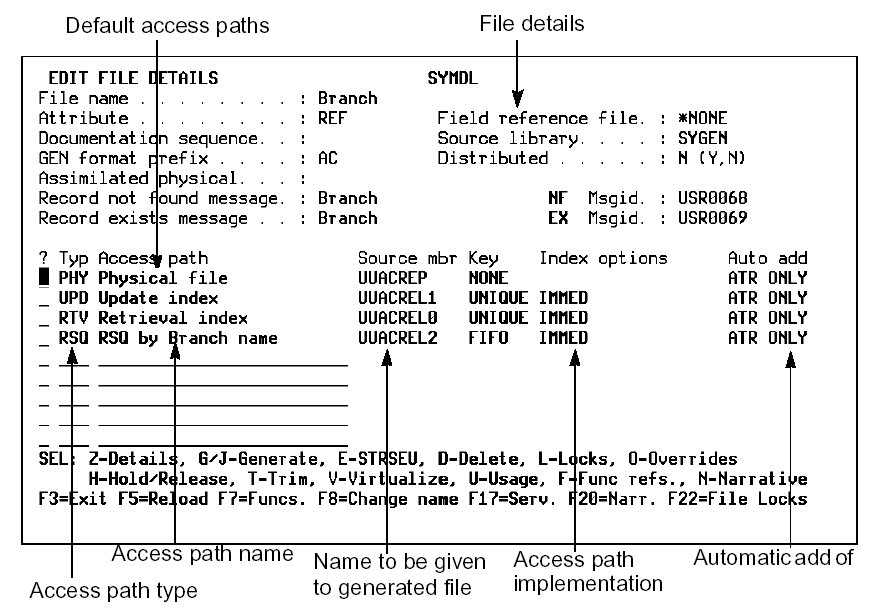

    The Edit File Details panel displays with a list of the access paths built over that file, the source member names, key sequence, and implementation attributes:

    Edit File Details

  2. Review the details. In the top half of this panel, view the details for the file.
  3. Review existing access paths. In the bottom half of the panel, view the list of all access paths already defined for the file, including the three default access paths (PHY, RTV, and UPD).
